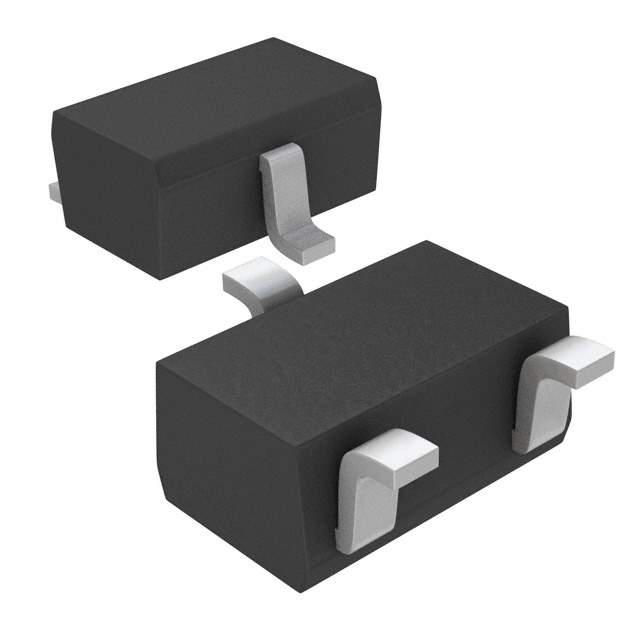

The DTC614TU is a pre-biased PNP transistor manufactured by Rohm Semiconductor. This transistor includes integrated bias resistors, which simplifies circuit design and reduces the number of external components required. The device is designed for switching and amplification applications.

Applications

• Digital circuit interfaces
• Inverter circuits
• Driver circuits
• Switching circuits
• General purpose amplification

Features

• Built-in bias resistors (R1 = 4.7 kΩ)
• Reduces component count
• Simplifies circuit design
• Surface mount package
• Halogen-free

Benefits

• Reduced board space
• Lower assembly costs
• Improved circuit reliability
• Easy to use in automated assembly processes
• Simplifies design and reduces time to market

Additional Details

The DTC614TU comes in a compact surface-mount package suitable for high-density circuit board designs. The built-in bias resistor (R1=4.7 kΩ) provides a defined input resistance and helps in simplifying the biasing of the transistor. Always refer to the datasheet for precise electrical characteristics, including voltage ratings, current ratings, and power dissipation limits. It's commonly found in a SOT-323 package.
