Same model may have multiple batches, images only for reference.

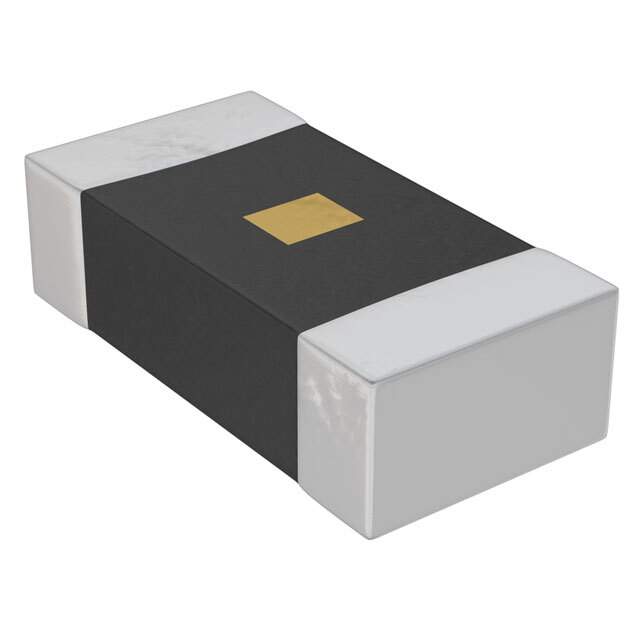

KTR18EZPF1004 Real Image
Same model may have multiple batches, images only for reference.

KTR18EZPF1004

Part No KTR18EZPF1004
Manufacturer Rohm Semiconductor
Catalog Chip Resistor - Surface Mount
Description RES SMD 1M OHM 1% 1/4W 1206 / 1 MOhms ±1% 0.25W, 1/4W Chip Resistor 1206 (3216 Metric) Automotive AEC-Q200, High Voltage Thick Film
Datasheet
KTR18EZPF1004 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Resistors>Chip Resistor - Surface Mount
Manufacturer Rohm Semiconductor
Packaging Reel - TR
Resistance 1 mOhms
Tolerance ±1%
Power (Watts) 0.25W, 1/4W
Composition Thick Film
Features Automotive AEC-Q200, High Voltage
Temperature Coefficient ±100ppm/°C
Temperature Range - Operating -55°C ~ 155°C
Case / Package 1206 (3216 Metric)
Supplier Device Package 1206
Ratings AEC-Q200
Size / Dimension 0.126" L x 0.063" W (3.20mm x 1.60mm)
Height - Seated (Max) 0.026" (0.65mm)
Number of Terminations 2
RoHS Status ROHS3 Compliant
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8533.21.0030
Other Part Number RHM1MAITR,KTR18EZPF1004-ND,Q3892908AA,RHM1MAICT,RHM1MAIDKR
Standard Package 5,000
Win Source Part Number 1331203-KTR18EZPF1004
Ultra Librarian 3D Model Ultra Librarian KTR18EZPF1004 CAD Model

Description

The Rohm Semiconductor KTR18EZPF1004 is a chip resistor with a resistance of 1 mOhms and a power rating of 0.25W/1/4W.

  • Design: Designed to withstand high voltage
  • Rating: Rated for automotive AEC-Q200 applications.
  • Tolerance: ±1%
  • Temperature Coefficient: ±100ppm/°C
  • Type: Thick film resistor
  • Terminations: Has two terminations
  • Package: 1206 package with a size of 3.20mm x 1.60mm
  • Height: 0.026"
  • Temperature Range: -55°C to 155°C
  • Packaging: Supplied in a reel of 5,000.
