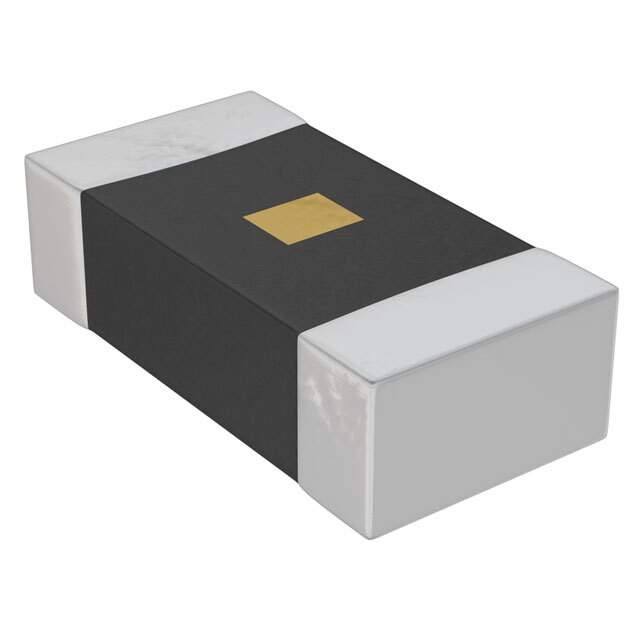

KTR18EZPF5603 Real Image
Same model may have multiple batches, images only for reference.

KTR18EZPF5603

Part No KTR18EZPF5603
Manufacturer Rohm Semiconductor
Catalog Chip Resistor - Surface Mount
Description RES SMD 560K OHM 1% 1/4W 1206
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Resistors
Manufacturer Rohm Semiconductor
Packaging Reel - TR
Status Active
Resistance (Ohms) 560k
Tolerance ±1%
Power (Watts) 0.25W, 1/4W
Composition Thick Film
Features Automotive AEC-Q200, High Voltage
Temperature Coefficient ±100ppm/°C
Temperature Range - Operating -55°C to 155°C
Case / Package 1206
Height - Seated (Max) 0.026" (0.65mm)
Number of Terminations 2
Win Source Part Number 110866-KTR18EZPF5603
Popularity Medium
Supply and Demand Status Balance
Application Field Used in Automotive, Industrial, Power Management, Consumer Electronics, Portable Devices
Ultra Librarian 3D Model Ultra Librarian KTR18EZPF5603 CAD Model

Description

The 110866-KTR18EZPF5603 is an active electronic component from Rohm Semiconductor with a medium popularity.

  • Type: Thick film resistor
  • Resistance: 560k ohms
  • Power: 0.25W
  • Applications: Automotive, industrial, power management, consumer electronics, and portable devices
  • Temperature Range: -55°C to 155°C
  • Tolerance: ±1%
  • Package: 1206
  • Height When Seated: 0.026" (0.65mm)
  • Features: High voltage and automotive AEC-Q200
