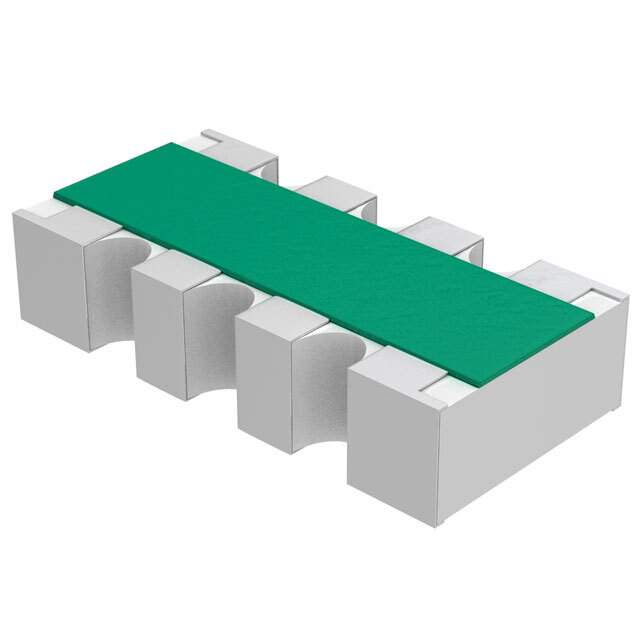

MNR04M0ABJ100 Real Image1 MNR04M0ABJ100 Real Image2
Same model may have multiple batches, images only for reference.
MNR04M0ABJ100 Real Image1 MNR04M0ABJ100 Real Image2
MNR04M0ABJ100 Real Image1 MNR04M0ABJ100 Real Image2
Same model may have multiple batches, images only for reference.

MNR04M0ABJ100

Part No MNR04M0ABJ100
Manufacturer Rohm Semiconductor
Catalog Resistor Networks, Arrays
Description RES ARRAY 4 RES 10 OHM 0804 / 10 Ohm ±5% 62.5mW Power Per Element Isolated 4 Resistor Network/Array ±300ppm/°C 0804, Convex, Long Side Terminals
Datasheet
MNR04M0ABJ100 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Resistors>Resistor Networks, Arrays
Mfr Rohm Semiconductor
Series MNR
Package Tape & Reel
Circuit Type Isolated
Resistance (Ohms) 10
Tolerance ±5%
Number of Resistors 4
Resistor Matching Ratio -
Resistor-Ratio-Drift -
Number of Pins 8
Power Per Element 62.5mW
Temperature Coefficient ±300ppm/°C
Temperature Range - Operating -55°C ~ 125°C
Applications -
Mounting Type Surface Mount
Package / Case 0804, Convex, Long Side Terminals
Supplier Device Package -
Size / Dimension 0.079" L x 0.039" W (2.00mm x 1.00mm)
Height - Seated (Max) 0.022" (0.55mm)
Moisture Sensitivity Level (MSL) 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8533.21.0020
Standard Package 10,000 pcs
Win Source Part Number 1382929-MNR04M0ABJ100
Ultra Librarian 3D Model Ultra Librarian MNR04M0ABJ100 CAD Model

Description

The MNR04M0ABJ100 is a resistor network array that provides precise resistance values for various applications, manufactured by Rohm Semiconductor.

  • Series: MNR
  • Packaging: Tape & Reel (TR)
  • Standard Package: 10,000 Pieces
  • Resistance (Ohms): 10
  • Tolerance: ±5%
  • Temperature Coefficient: ±300ppm/°C
  • Circuit Type: Isolated
  • Number of Resistors: 4
  • Number of Pins: 8
  • Mounting Type: Surface Mount
  • Package / Case: 0804, Convex, Long Side Terminals
