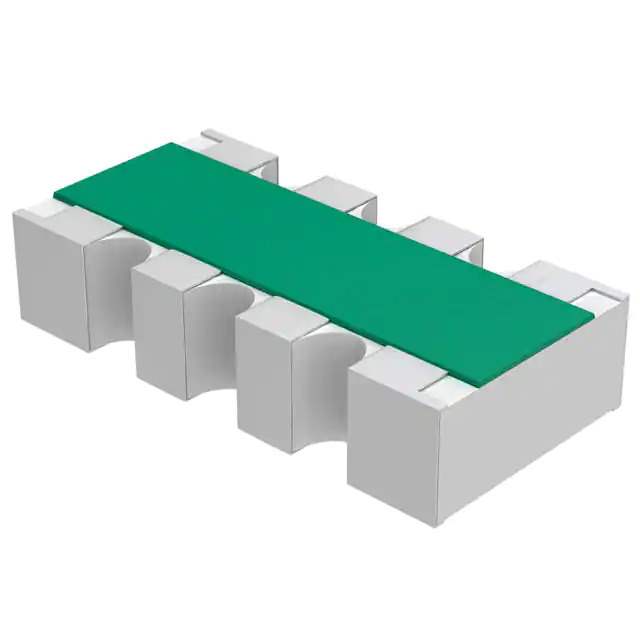

MNR04M0APJ105 Real Image
Same model may have multiple batches, images only for reference.

MNR04M0APJ105

Part No MNR04M0APJ105
Manufacturer Rohm Semiconductor
Catalog Resistor Networks, Arrays
Description RES ARRAY 4 RES 1M OHM 0804
Datasheet
MNR04M0APJ105 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Resistors - Resistor Networks, Arrays
Mfr Rohm Semiconductor
Series MNR
Package Tape & Reel
Product Status Discontinued
Circuit Type Isolated
Resistance (Ohms) 1M
Tolerance ±5%
Number of Resistors 4
Number of Pins 8
Power Per Element 62.5mW
Temperature Coefficient ±200ppm/°C
Temperature Range - Operating -55°C ~ 155°C
Applications Automotive AEC-Q200
Mounting Type Surface Mount
Package / Case 0804, Convex, Long Side Terminals
Size / Dimension 0.079" L x 0.039" W (2.00mm x 1.00mm)
Height - Seated (Max) 0.018" (0.45mm)
Standard Package 10,000 pcs
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8533.21.0020
Win Source Part Number 846002-MNR04M0APJ105
Ultra Librarian 3D Model Ultra Librarian MNR04M0APJ105 CAD Model

Description

The MNR series resistor network, part number 846002-MNR04M0APJ105, is a reliable and high-quality electronic component from Rohm Semiconductor.

  • Application: Automotive AEC-Q200
  • Resistance: 1M Ohms
  • Tolerance: ±5%
  • Package Size: 0.079" L x 0.039" W (2.00mm x 1.00mm)
  • Resistors: 4 Isolated
  • Power Rating per Element: 62.5mW
  • Mounting Type: Surface Mountable
  • Status: Discontinued
