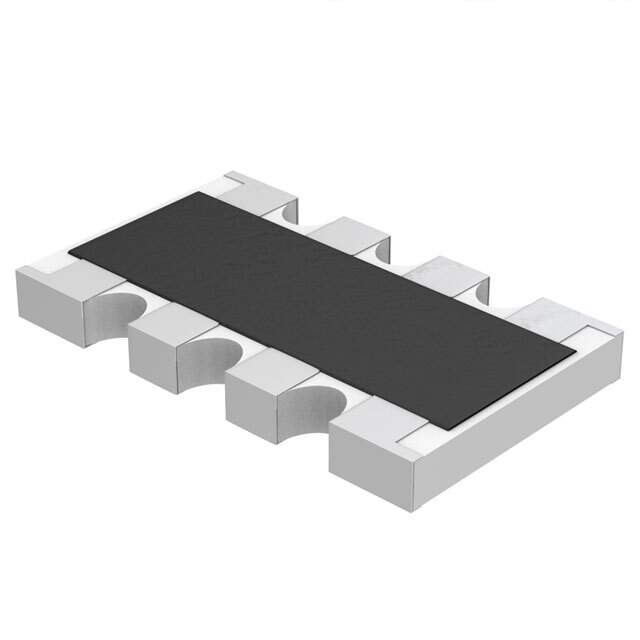

MNR34J5ABJ561 Real Image
Same model may have multiple batches, images only for reference.

MNR34J5ABJ561

Part No MNR34J5ABJ561
Manufacturer Rohm Semiconductor
Catalog Resistor Networks, Arrays
Description RES ARRAY 4 RES 560 OHM 2012
Datasheet
MNR34J5ABJ561 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Win Source Part Number 101584-MNR34J5ABJ561
Height - Seated (Max) 0.026" (0.65mm)
Mounting SMD (SMT)
Applications Automotive AEC-Q200
Temperature Range - Operating -55°C to 125°C
Temperature Coefficient ±200ppm/°C
Power Per Element 125mW
Number of Pins 8
Number of Resistors 4
Tolerance ±5%
Resistance (Ohms) 560
Circuit Type Isolated
Packaging Reel - TR
Manufacturer Rohm Semiconductor
Categories Resistors
Ultra Librarian 3D Model Ultra Librarian MNR34J5ABJ561 CAD Model

Description

MNR34J5ABJ561 is a resistor array manufactured by Rohm Semiconductor.

  • Resistors: 4
  • Resistance: 560 Ohms
  • Power Rating per element: 125mW
  • Temperature Coefficient: ±200ppm/°C
  • Tolerance: ±5%
  • Circuit Type: isolated
  • Pins: 8
  • Mounting: SMD
  • Height: 0.026" (0.65mm)
  • Application: automotive AEC-Q200
  • Temperature Range: -55°C to 125°C
