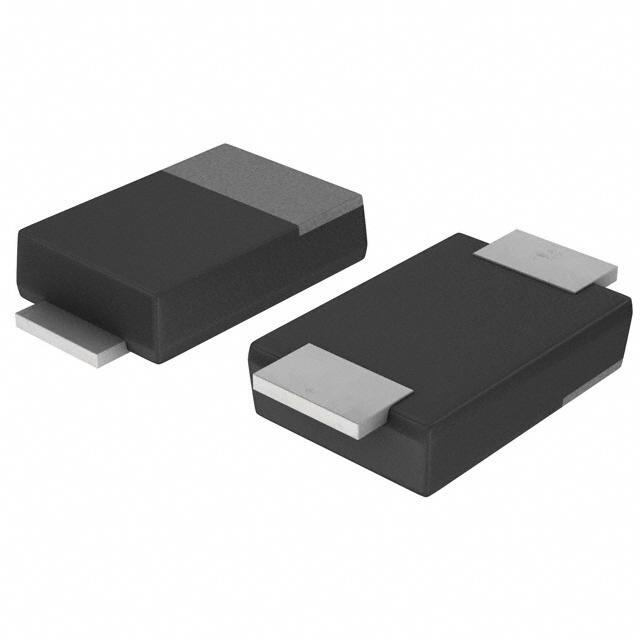

The RB051LA-40TR is a Schottky barrier diode manufactured by Rohm Semiconductor, designed for high-speed switching and rectification applications. It features a low forward voltage drop, which contributes to improved efficiency in various electronic circuits. The 'TR' suffix typically indicates that the component is supplied on tape and reel for automated assembly.

Applications

• DC-DC converters
• Reverse polarity protection
• Switching power supplies
• High-frequency rectification
• Voltage clamping circuits

Features

• Low forward voltage (Vf)
• High surge current capability
• Fast switching speed
• Small surface mount package
• RoHS compliant

Benefits

• Increased efficiency in power conversion circuits due to low forward voltage drop.
• Enhanced circuit protection against voltage spikes due to high surge current handling.
• Reduced switching losses in high-frequency applications due to fast recovery time.
• Space-saving design suitable for compact electronic devices.
• Compliance with environmental regulations (RoHS).

Additional Details

The RB051LA-40TR features a maximum repetitive peak reverse voltage (VRRM) of 40V and a maximum average forward current (IF(AV)) of 0.5A. The low forward voltage drop typically ranges from 0.3V to 0.4V depending on the forward current. It is available in a small surface mount package, allowing for easy integration into various printed circuit boards (PCBs). The fast switching characteristics of the diode make it well-suited for high-frequency applications where efficient rectification and voltage clamping are crucial.

The 'TR' suffix confirms the component's availability on tape and reel, which is specifically designed for automated pick-and-place assembly processes. This feature streamlines the manufacturing process, reducing assembly time and costs. Furthermore, the RB051LA-40TR’s robust construction ensures reliable performance even under demanding operating conditions. Its compliance with RoHS standards makes it a suitable choice for environmentally conscious designs, aligning with global environmental regulations. The combination of compact size, high performance, and automated assembly capabilities makes it a versatile component for a wide range of electronic applications.
