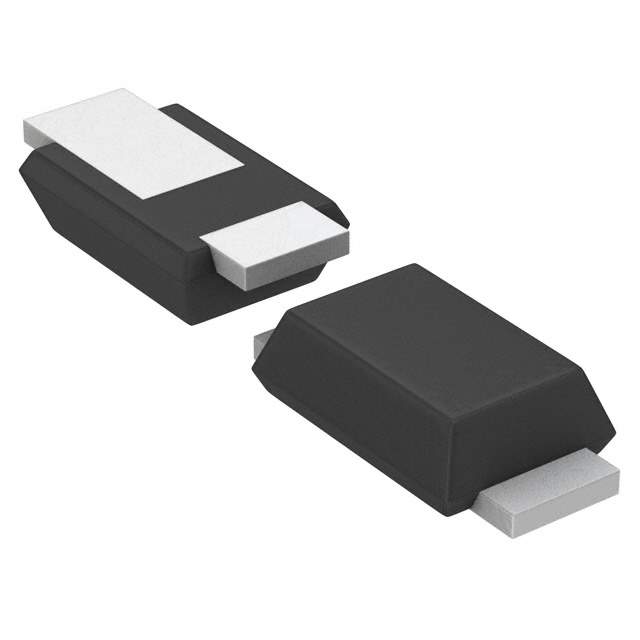

The RB160VA-40 is a Schottky Barrier Diode manufactured by Rohm Semiconductor. This diode is characterized by its low forward voltage drop and fast switching speed, making it suitable for various high-frequency and power-efficient applications. Its compact package facilitates easy integration into circuit designs.

Applications

• DC-DC converters: Used for rectification and freewheeling.
• Reverse polarity protection: Prevents damage from incorrect power supply connection.
• Switching power supplies: Enables efficient power conversion.
• High-frequency rectification: Ideal for circuits operating at high frequencies.
• Solar panel bypass diodes: Protects solar cells from hot-spot formation.

Features

• Low forward voltage drop (Vf): Minimizes power losses and improves efficiency.
• Fast switching speed: Enables high-frequency operation.
• High surge current capability: Provides robustness against transient voltage spikes.
• Small surface-mount package: Facilitates compact PCB design.
• RoHS compliant: Meets environmental regulations.

Benefits

• Improved power efficiency: Reduces energy consumption and heat generation.
• Enhanced circuit performance: Enables faster switching speeds and higher operating frequencies.
• Increased reliability: Provides protection against voltage transients and surges.
• Compact design: Allows for smaller and lighter electronic products.
• Reduced system cost: Optimized performance can potentially reduce the need for more complex protection circuits.

Additional Details

The RB160VA-40 typically features a repetitive peak reverse voltage (Vrrm) of 40V and an average forward current (If) of 1A or more. The forward voltage drop is typically in the range of 0.3V to 0.5V, depending on the forward current. Detailed specifications including maximum surge current, reverse leakage current, and operating temperature range can be found in the manufacturer's datasheet.

Proper thermal management is essential for ensuring the reliability of the RB160VA-40. Although the package is small, adequate PCB layout and heat sinking techniques may be required in applications with high forward currents.
