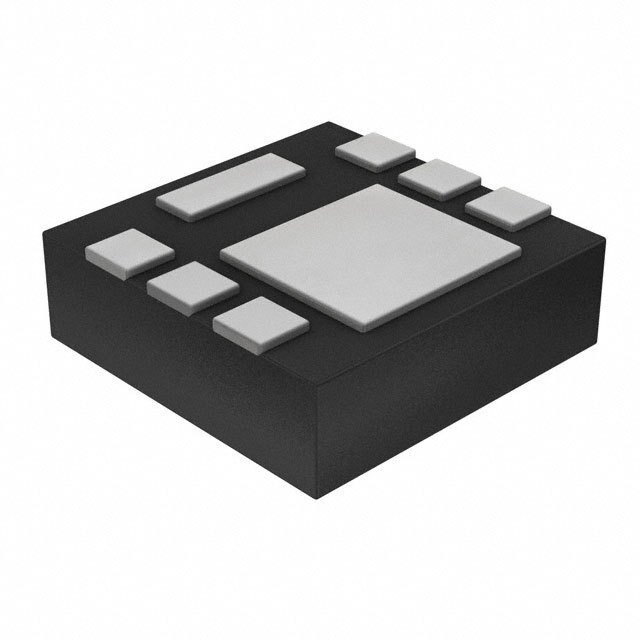

Same model may have multiple batches, images only for reference.
RF4E075ATTCR Rohm Semiconductor
Same model may have multiple batches, images only for reference.

RF4E075ATTCR

Part No RF4E075ATTCR
Manufacturer Rohm Semiconductor
Catalog Transistors - FETs, MOSFETs - RF
Description MOSFET P-CH 30V 7.5A 8DFN / Trans MOSFET P-CH 30V 7.5A 8-Pin HUML EP T/R
Datasheet
RF4E075ATTCR Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Discrete Semiconductor Products
Manufacturer Rohm Semiconductor
Packaging Reel package
Channel Type Type P
Technology MOSFET
Drain Source Voltage 30V
Current - Continuous Drain (Id) @ 25°C 7.5A (Ta)
Drive Voltage (Max Rds On, Min Rds On) 4.5V, 10V
Vgs(th) (Maximum) @ Id 2.5V @ 1mA
Gate Charge (Qg) (Maximum) @ Vgs 22nC @ 10V
Input Capacitance (Ciss) (Maximum) @ Vds 1000pF @ 15V
Vgs (Maximum) ±20V
Power Dissipation (Maximum) 2W (Ta)
Rds On (Maximum) @ Id, Vgs 21.7 mOhm @ 7.5A, 10V
Operating Temperature Range 150°C (TJ)
Mounting SMD
Manufacturer Package 6-HUML2020L8 (2x2)
Package 8-PowerUDFN
Win Source Part Number 793172-RF4E075ATTCR
Popularity Medium
Supply and Demand Status Balance
Family Name RF4E075AT
Introduction Date February 20, 2015
ECCN EAR99
Estimated EOL Date 2035
Ultra Librarian 3D Model Ultra Librarian RF4E075ATTCR CAD Model

Description

The RF4E075ATTCR is a MOSFET manufactured by Rohm Semiconductor.

  • Drain Source Voltage: 30V
  • Channel Type: P
  • Current Continuous Drain (Id) @ 25°C: 7.5A (Ta)
  • Power Dissipation (maximum): 2W (Ta)
  • Operating Temperature Range: 150°C (TJ)
  • Packaging: Reel
  • Estimated EOL Date: 2035
