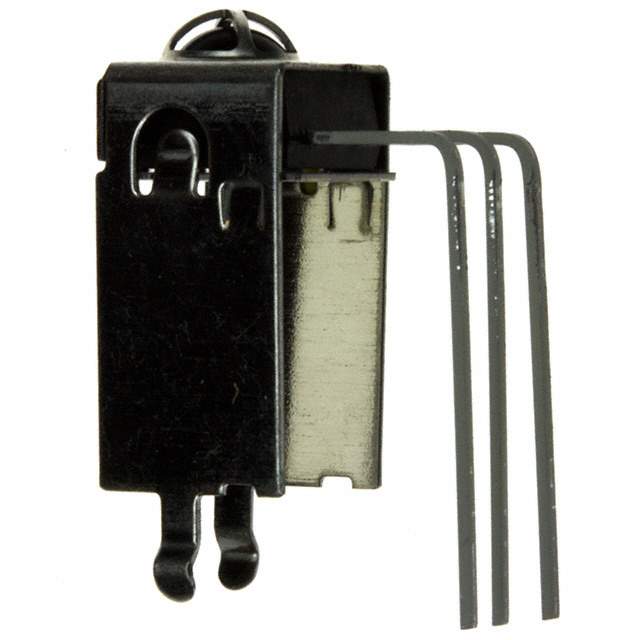

The RPM7136-H4R is an infrared remote control receiver module manufactured by Rohm Semiconductor. It is designed to receive and decode infrared signals transmitted from remote controls. This module is commonly used in various consumer electronic devices that require remote control functionality.

Applications

• Televisions: Enables remote control operation for channel selection, volume adjustment, and power control.
• Audio/Video Receivers: Receives commands for adjusting volume, changing inputs, and controlling playback functions.
• DVD and Blu-ray Players: Facilitates remote control of playback features like play, pause, stop, and skip.
• Set-Top Boxes: Allows users to navigate menus, change channels, and access various content options via remote control.
• Air Conditioners: Enables remote adjustment of temperature, fan speed, and operating modes.

Features

• Compact Package: Space-saving design for easy integration into electronic devices.
• High Sensitivity: Ensures reliable reception of infrared signals, even at longer distances.
• Low Supply Current: Minimizes power consumption, making it suitable for battery-powered applications.
• Internal Filter: Blocks unwanted noise and interference, ensuring accurate signal reception.
• Automatic Gain Control (AGC): Maintains a stable output signal level, even with varying signal strengths.

Benefits

• Simplified Remote Control Integration: Streamlines the process of adding remote control functionality to devices.
• Enhanced Reliability: Robust design ensures consistent and dependable performance.
• Reduced Power Consumption: Extends battery life in portable devices and minimizes energy usage in other applications.
• Improved Noise Immunity: Minimizes the impact of external interference on signal reception.
• Stable Output Signal: Provides reliable data for decoding and processing remote control commands.

Additional Details

The RPM7136-H4R typically operates at a supply voltage of 5V. It is designed to receive infrared signals modulated at a carrier frequency of approximately 36kHz. The module outputs a digital signal corresponding to the decoded remote control commands. An external pull-up resistor is generally recommended for the output pin. The operating temperature range usually spans from -25°C to +85°C. The Automatic Gain Control (AGC) feature automatically adjusts the gain of the internal amplifier to compensate for variations in signal strength, ensuring a consistent output level.
