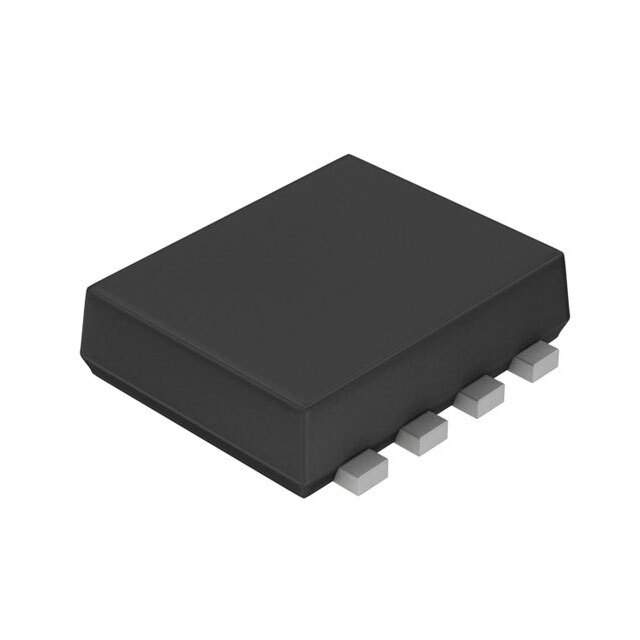

The RQ1C075UN is a P-channel MOSFET from Rohm Semiconductor, designed for high-speed switching applications and power management circuits. It offers low on-resistance and excellent switching characteristics, contributing to improved efficiency and reduced power loss in various electronic devices.

Applications

• DC-DC converters
• Load switches
• Power management in portable devices
• Motor control circuits
• Backlight inverters

Features

• P-Channel MOSFET
• Low on-resistance (Rds(on)) to minimize conduction losses
• High-speed switching capability
• Low gate charge (Qg) for efficient switching
• Avalanche rated
• Surface mount package
• Lead-free construction

Benefits

• Improved energy efficiency due to low on-resistance and reduced switching losses.
• Compact design suitable for space-constrained applications thanks to its surface mount package.
• Enhanced reliability through avalanche rating, providing robustness against voltage transients.
• Simplified thermal management due to efficient power dissipation.
• Environmentally friendly due to its lead-free construction.

Technical Specifications

The RQ1C075UN features a drain-source voltage (Vds) rating of -12V and a continuous drain current (Id) rating that depends on the operating temperature and heatsinking conditions. It typically has an Rds(on) value in the milliohm range. The gate-source voltage (Vgs) is typically rated at +/-8V. The device is typically available in a small surface-mount package such as a WSON package. Precise values for these and other parameters such as gate charge (Qg), input capacitance (Ciss), and output capacitance (Coss) can be found in the device datasheet. It is crucial to consult the datasheet for accurate and up-to-date specifications before using this MOSFET in any design.

The device's low on-resistance minimizes conduction losses, making it suitable for applications where efficiency is critical. Its fast switching speed enables efficient operation in high-frequency circuits. The avalanche rating ensures that the MOSFET can withstand transient voltage spikes, enhancing its reliability. The small surface-mount package allows for compact designs, making it ideal for portable devices and other space-constrained applications.
