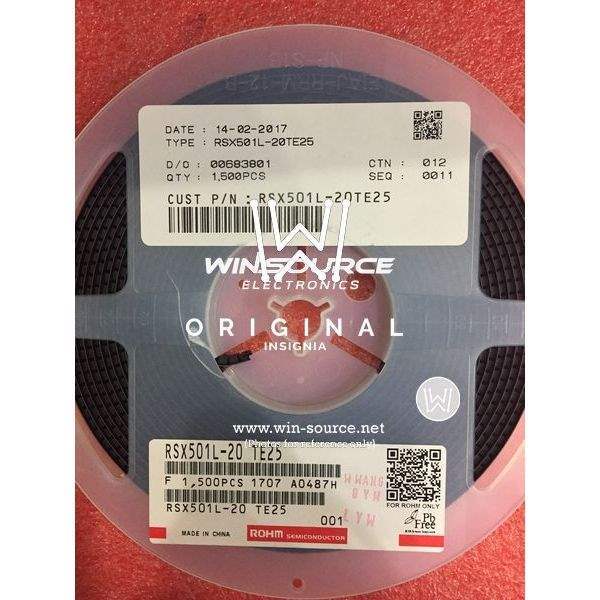

RSX501L-20TE25 Rohm Semiconductor RSX501L-20TE25 label picture
Same model may have multiple batches, images only for reference.
RSX501L-20TE25 Rohm Semiconductor RSX501L-20TE25 label picture
RSX501L-20TE25 Rohm Semiconductor RSX501L-20TE25 label picture
Same model may have multiple batches, images only for reference.

RSX501L-20TE25

Part No RSX501L-20TE25
Manufacturer Rohm Semiconductor
Catalog Diodes, Rectifiers - Single
Description DIODE SCHOTTKY 20V 5A PMDS
Datasheet
RSX501L-20TE25 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Discrete Semiconductor Products
Manufacturer Rohm Semiconductor
Packaging Reel - TR
Status Active
Diode Type Schottky
Voltage - DC Reverse (Vr) (Max) 20V
Current - Average Rectified (Io) 5A
Voltage - Forward (Vf) (Max) @ If 390mV @ 3A
Speed(Frequency) Fast Recovery = 200mA (Io)
Current - Reverse Leakage @ Vr 500μA @ 20V
Mounting SMD (SMT)
Case / Package PMDS
Operating Temperature - Junction 125°C (Max)
Win Source Part Number 027543-RSX501L-20TE25
Family Name RSX501L-20
Introduction Date March 30, 2011
ECCN EAR99
Halogen Free Compliant
Estimated EOL Date 2019
Is this a common-used part? Yes
Popularity High
Supply and Demand Status Limited
Quantity per package 1,500
Ultra Librarian 3D Model Ultra Librarian RSX501L-20TE25 CAD Model

Description

This Schottky diode is manufactured by Rohm Semiconductor and has a high popularity rating.

  • Win Source Part Number: 027543-RSX501L-20TE25
  • Type: Fast recovery diode
  • Maximum Forward Voltage: 390mV @ 3A
  • Maximum Reverse Voltage: 20V
  • Reverse Leakage: 500μA @ 20V
  • Halogen-Free Standards: Compliant
  • ECCN: EAR99
  • Popularity: Commonly used part
  • Quantity per Package: 1,500
