Same model may have multiple batches, images only for reference.

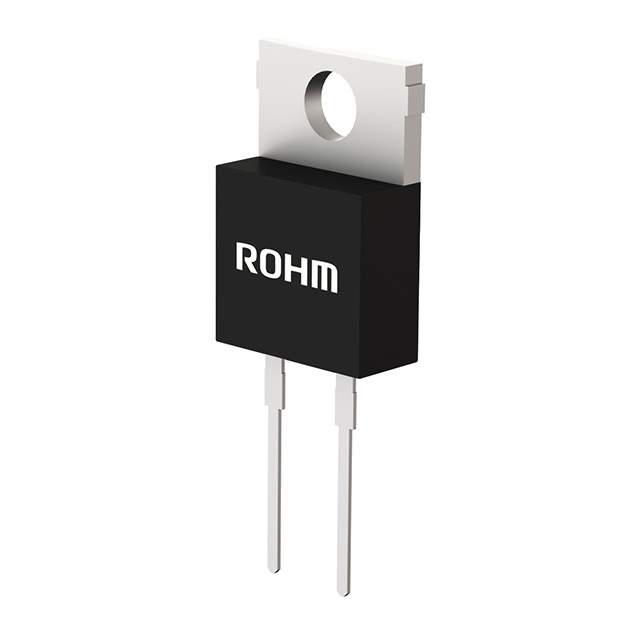

SCS302AHGC9 Real Image
Same model may have multiple batches, images only for reference.

SCS302AHGC9

Part No SCS302AHGC9
Manufacturer Rohm Semiconductor
Catalog Diodes, Rectifiers - Single
Description SHORTER RECOVERY TIME, ENABLING
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Manufacturer Rohm Semiconductor
Diode Type Silicon Carbide Schottky
Voltage - DC Reverse (Vr) (Maximum) 650V
Current - Average Rectified (Io) 2.15A (DC)
Voltage - Forward (Vf) (Maximum) at If 1.5V at 2A
Speed No Recovery Time > 500mA (Io)
Reverse Recovery Time (trr) 0ns
Current - Reverse Leakage at Vr 10.8μA at 650V
Capacitance at Vr, F 110pF at 1V, 1MHz
Mounting Style Through Hole
Manufacturer Package TO-220-2
Supplier Device Package TO-220ACP
Operating Temperature - Junction 175°C (Maximum)
Manufacturer Pack Quantity 1,000
MSL Level 1 (Unlimited)
Popularity Low
Supply and Demand Status Limited
Win Source Part Number 813164-SCS302AHGC9
Ultra Librarian 3D Model Ultra Librarian SCS302AHGC9 CAD Model

Description

The Rohm Semiconductor 813164-SCS302AHGC9 is a silicon carbide Schottky diode from Rohm Semiconductor.

  • Mounting Style: Through-Hole
  • Supplier Device Package: TO-220ACP
  • Manufacturer Package: TO-220-2
  • Voltage Rating: 650V
  • Current Rating: 2.15A (DC)
  • Reverse Recovery Time: 0ns
  • Operating Temperature: 175°C (maximum)
  • Capacitance: 110pF @ 1V, 1MHz
  • Current Reverse Leakage: 10.8μA @ 650V
  • Manufacturer Pack Quantity: 1,000
  • MSL Level: 1 (unlimited)
