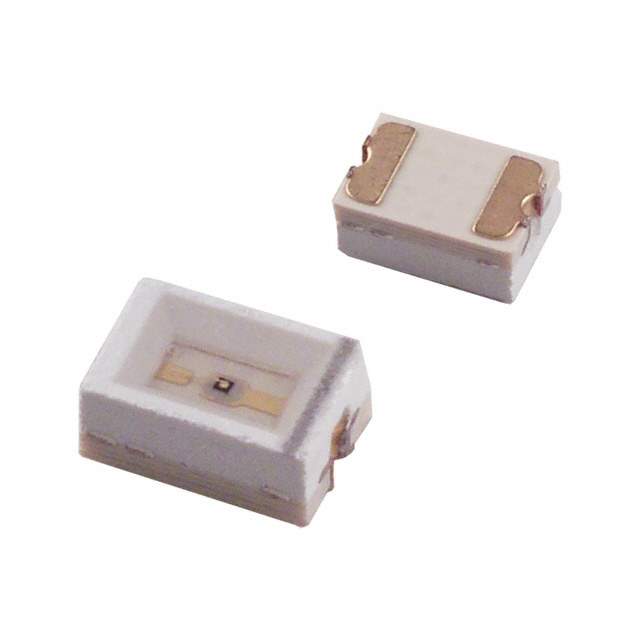

The SML-011UTT86R is a surface-mount LED manufactured by Rohm Semiconductor. This LED is designed for various indication and display applications where compact size and low power consumption are crucial. It provides a bright and uniform light output and is suitable for use in consumer electronics, automotive applications, and industrial equipment.

Applications:

• Consumer Electronics: Indicator lights in televisions, set-top boxes, and audio equipment.
• Automotive Applications: Backlighting for dashboards, instrument panels, and switches.
• Industrial Equipment: Status indicators in control panels, machinery, and test equipment.
• Medical Devices: Indicator lights in medical instruments and equipment.
• General Illumination: Small-scale lighting in various applications.

Features:

• Compact Size: Small surface-mount package allows for space-saving designs.
• High Brightness: Provides a bright and easily visible light output.
• Low Power Consumption: Minimizes energy usage.
• Long Lifespan: Offers a long operating life.
• Wide Viewing Angle: Provides a wide viewing angle for easy visibility.
• RoHS Compliant: Complies with environmental regulations.

Benefits:

• Reduced Board Space: Small size allows for denser circuit designs.
• Improved Visibility: High brightness and wide viewing angle ensure easy visibility.
• Energy Efficiency: Low power consumption reduces energy costs.
• Long-Term Reliability: Long lifespan minimizes the need for replacements.
• Versatile Application: Suitable for a wide range of applications.

Additional Details:

The SML-011UTT86R is typically available in a small surface-mount package such as 0603. Key specifications include the forward voltage, forward current, luminous intensity, and color. These parameters should be carefully considered when selecting the LED for a specific application. The datasheet provides detailed information on the LED's electrical characteristics, optical characteristics, and thermal performance. It is important to use appropriate current-limiting resistors to protect the LED from overcurrent damage. The color temperature and viewing angle are also important factors to consider when selecting the LED for a specific application. The LED's thermal resistance should be considered to ensure proper heat dissipation and prevent overheating.
