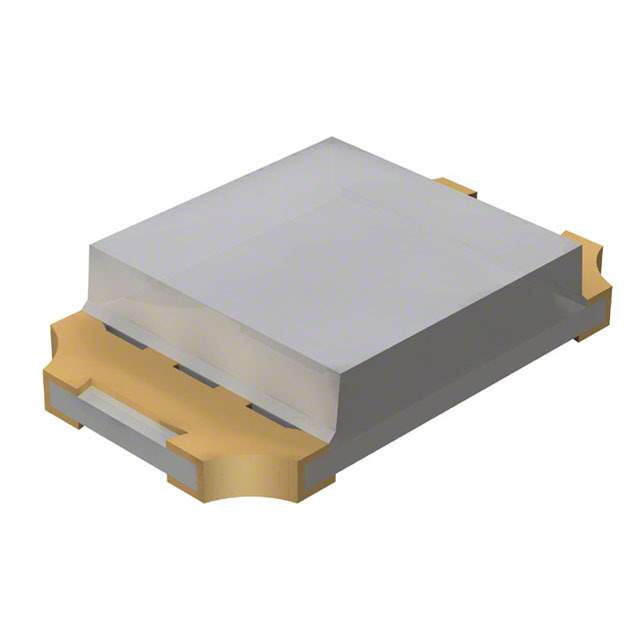

The SML-P12MTT86RN is a surface-mount LED manufactured by Rohm Semiconductor. It's designed for various indicator and lighting applications requiring a compact and reliable light source.

Applications

• Indicator lights on electronic devices
• Backlighting for small displays
• Status indicators
• General lighting purposes

Features

• Compact surface-mount package
• High luminous intensity
• Wide viewing angle
• Available in various colors (determined by suffix)
• Long operating lifetime
• RoHS compliant

Benefits

• Reduces board space due to its small size.
• Provides bright and clear indication.
• Ensures visibility from various angles.
• Offers long-term reliability and reduces maintenance costs.
• Environmentally friendly due to RoHS compliance.

Additional Details

The specific color and luminous intensity of the SML-P12MTT86RN are determined by the color code and intensity binning. The package is designed for automated assembly processes. Refer to the Rohm Semiconductor datasheet for detailed optical and electrical characteristics, including forward voltage, wavelength, and viewing angle. It's typically driven with a low forward current (e.g., 20mA). Proper heat sinking may be required in some applications depending on the ambient temperature and operating current. The part is designed for reflow soldering.
