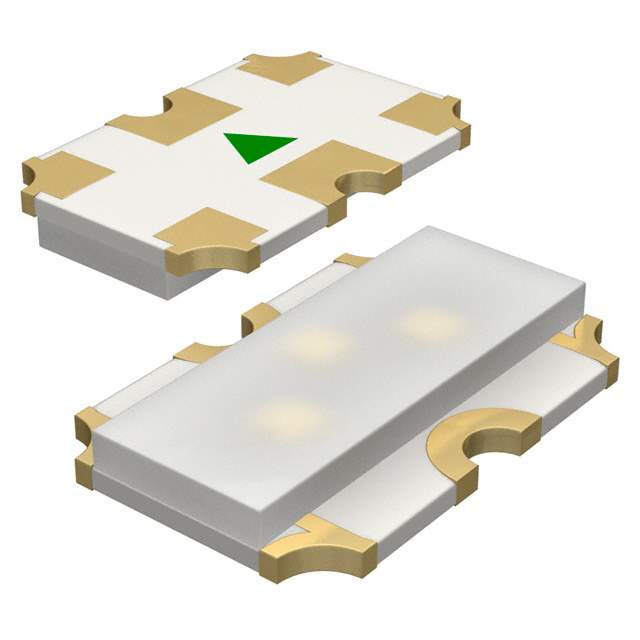

The SMLP36RGB1 is a compact surface-mount RGB LED from Rohm Semiconductor. It combines red, green, and blue LED chips into a single package, enabling full-color display capabilities. This LED is designed for applications requiring vibrant colors and high brightness in a small form factor.

Applications

• Indicator Lights
• Backlighting for LCDs and Keypads
• Consumer Electronics
• Amusement Equipment
• Automotive Lighting

Features

• RGB LED: Integrates red, green, and blue chips for full-color mixing.
• Compact Package: Small footprint for space-constrained designs.
• High Brightness: Delivers intense and vibrant light output.
• Wide Viewing Angle: Provides broad light distribution.
• Surface Mount Technology (SMT): Easy to assemble using standard SMT processes.
• Lead-Free: Complies with environmental regulations.

Benefits

• Versatile Color Options: Allows for a wide range of colors and effects.
• Space Saving: Reduces board space requirements.
• Enhanced Visual Appeal: Creates eye-catching displays.
• Simplified Assembly: Streamlines manufacturing processes.
• Long Lifespan: Offers extended operational life.

The SMLP36RGB1's ability to produce a broad spectrum of colors makes it suitable for a variety of applications. The small package size makes it ideal for portable devices and other applications where space is limited. The device is typically driven by controlling the current through each of the red, green, and blue LED chips. By adjusting the relative currents, different colors can be achieved.

Typical specifications include the forward voltage for each color (red, green, and blue), luminous intensity, and viewing angle. The forward voltage typically varies between 2V and 4V depending on the color. Luminous intensity can range from a few hundred mcd to several cd. Detailed specifications, including color coordinates, thermal resistance, and maximum ratings, can be found in the Rohm Semiconductor datasheet for the SMLP36RGB1. The operating temperature range is generally between -40°C and +85°C.
