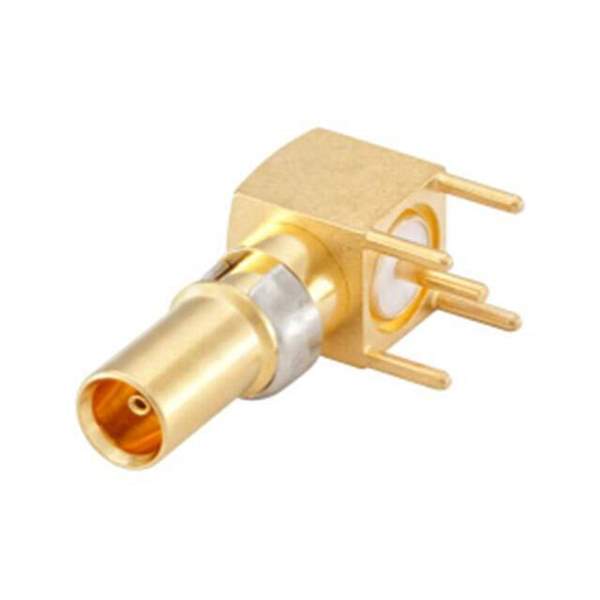

45K201-400L5 Real Image
Same model may have multiple batches, images only for reference.

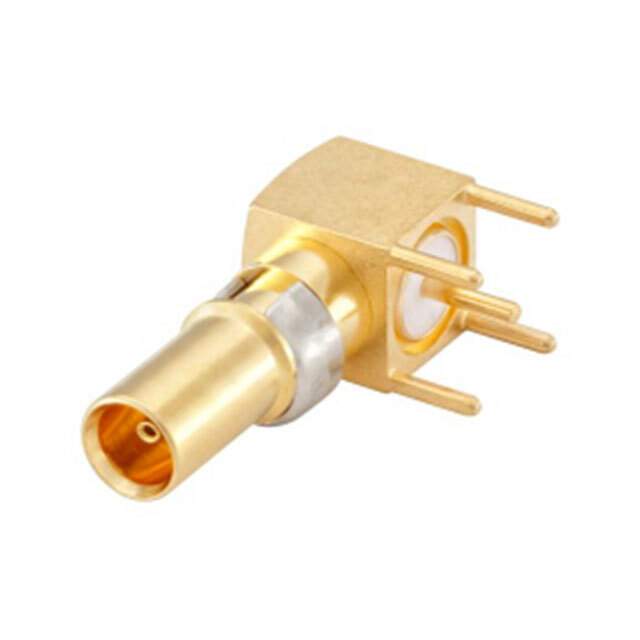

45K201-400L5

Part No 45K201-400L5
Manufacturer Rosenberger Hochfrequenztechnik GmbH & Co. KG
Catalog Coaxial Connectors (RF) - Assemblies
Description CONN 1.0/2.3 JACK R/A 50OHM PCB / 1.0/2.3 Connector Jack, Female Socket 50Ohm Through Hole, Right Angle Solder
Datasheet
45K201-400L5 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Connectors, Interconnects>Coaxial Connectors (RF)>Coaxial Connector (RF) Assemblies
Manufacturer Rosenberger
Packaging Bulk
Connector Style 1.0/2.3
Connector Type Jack, Female Socket
Contact Termination Solder
Shield Termination Solder
Impedance 50Ohm
Mounting Through Hole, Right Angle
Fastening Type Push-Pull
Frequency - Max 6 GHz
Number of Ports 1
Housing Color Gold
Center Contact Material Beryllium Copper
Body Material Brass
Body Finish Gold
Center Contact Plating Gold
Dielectric Material Polytetrafluoroethylene (PTFE)
Temperature Range - Operating -55°C ~ 125°C
Voltage Rating 250 V
Mating Cycles 500
Base Product Number 45K201
RoHS Status RoHS Compliant
MSL Level 1 (Unlimited)
ECCN EAR99
HTSUS 8536.69.4010
Other Part Number 1868-1264
Standard Package 100
Win Source Part Number 1331975-45K201-400L5
Ultra Librarian 3D Model Ultra Librarian 45K201-400L5 CAD Model

Description

The Rosenberger 45K201-400L5 is a coaxial connector assembly designed for use in various applications that require its unique specifications.

  • Voltage Rating: 250 V
  • Impedance: 50 Ohm
  • Housing Color: Gold
  • Body Finish: Yes
  • RoHS compliance: Yes
