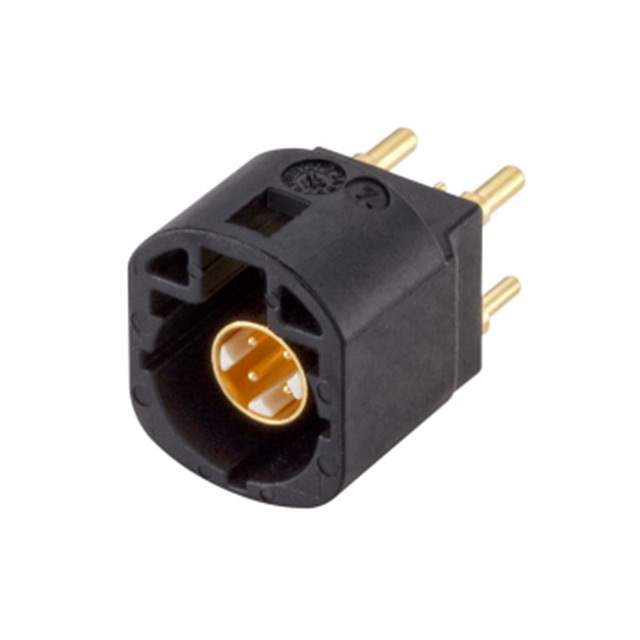

D4S10A-400L5-A Real Image
Same model may have multiple batches, images only for reference.

D4S10A-400L5-A

Part No D4S10A-400L5-A
Manufacturer Rosenberger
Catalog Coaxial Connectors (RF)
Description CONN HSD FAKRA PLUG STR 100OHM / HSD®, Fakra, Quadraxial Connector Plug, Male Pin 100Ohm Through Hole Solder
Datasheet
D4S10A-400L5-A Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Connectors, Interconnects>Coaxial Connectors (RF)
Mfr Rosenberger
Series HSD®
Package Tape & Reel (TR),Cut Tape (CT)
Connector Style HSD®, Fakra, Quadraxial
Connector Type Plug, Male Pin
Contact Termination Solder
Shield Termination Solder
Impedance 100Ohm
Mounting Type Through Hole
Fastening Type Latch Lock
Frequency - Max 2 GHz
Number of Ports 1
Features Code A
Housing Color Black
Center Contact Material Brass
Body Material Brass
Body Finish Gold
Center Contact Plating Gold
Dielectric Material Liquid Crystal Polymer (LCP)
Temperature Range - Operating -40°C ~ 105°C
Voltage Rating 100 V
Mating Cycles 25
Insertion Loss 0.10dB
Base Product Number D4S10A
MSL Level 1 (Unlimited)
ECCN EAR99
HTSUS 8536.69.4010
Other Names 1868-1502-2,1868-1502-1,166085,1868-1502-6INACTIVE,1868-1502-6,1868-1502-6-ND
Standard Package 125
Win Source Part Number 1054854-D4S10A-400L5-A
Ultra Librarian 3D Model Ultra Librarian D4S10A-400L5-A CAD Model

Description

The HSD® Fakra Quadraxial Plug Male Pin Connector is a high-performance coaxial connector designed for use in RF applications.

  • Fastening Type: Latch Lock
  • Contact Termination: Solder
  • Voltage: Up to 100V
  • Frequency: Up to 2 GHz
  • Housing Color: Black
  • Body Material: Brass
  • Body Finish: Gold
  • Insertion Loss: 0.10dB
  • Mounting: Through Hole
  • Impedance: 100Ohm
  • Mating Cycle: 25
  • Package: Tape & Reel and Cut Tape
