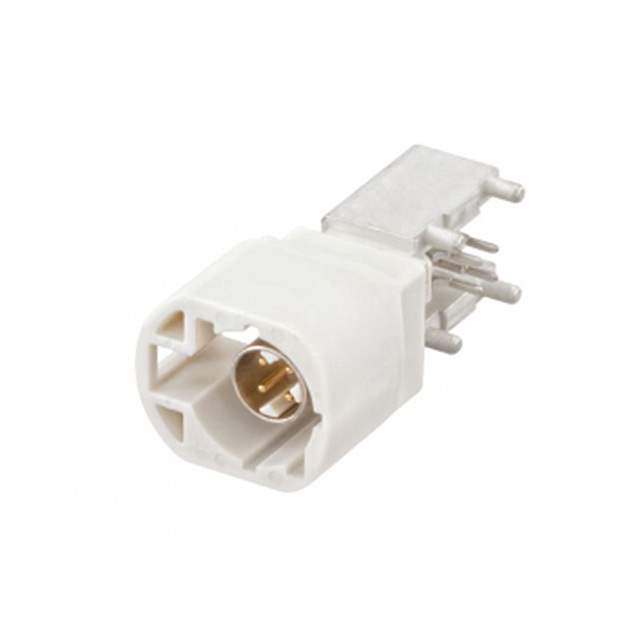

D4S20L-40MA5-B Real Image
Same model may have multiple batches, images only for reference.

D4S20L-40MA5-B

Part No D4S20L-40MA5-B
Manufacturer Rosenberger
Catalog Coaxial Connectors (RF)
Description CONN HSD FAKRA PLUG R/A 100OHM / HSD®, Fakra, Quadraxial Connector Plug, Male Pin 100Ohm Through Hole, Right Angle Solder
Datasheet
D4S20L-40MA5-B Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Connectors, Interconnects>Coaxial Connectors (RF)
Mfr Rosenberger
Series HSD®
Package Tape & Reel
Connector Style HSD®, Fakra, Quadraxial
Connector Type Plug, Male Pin
Contact Termination Solder
Shield Termination Solder
Impedance 100Ohm
Mounting Type Through Hole, Right Angle
Fastening Type Latch Lock
Frequency - Max 2 GHz
Number of Ports 1
Features Code B
Housing Color White
Center Contact Material Bronze
Body Material Brass
Body Finish Nickel
Center Contact Plating Gold
Dielectric Material Liquid Crystal Polymer (LCP)
Temperature Range - Operating -40°C ~ 105°C
Voltage Rating 100 V
Mating Cycles 25
Insertion Loss 0.10dB
Base Product Number D4S20L
MSL Level 1 (Unlimited)
ECCN EAR99
HTSUS 8536.69.4010
Other Names 1868-1524-6,1868-1524-1,1868-1524-2
Standard Package 200
Win Source Part Number 1193641-D4S20L-40MA5-B
Ultra Librarian 3D Model Ultra Librarian D4S20L-40MA5-B CAD Model

Description

The Rosenberger D4S20L-40MA5-B is a coaxial connector that is designed for use in electronic circuits. It is a male pin plug connector that has a latch lock fastening type and is packaged in tape and reel.

  • Impedance: 100 ohm
  • Maximum Frequency: 2 GHz
  • Housing Color: white
  • Material: brass
  • Finish: nickel
  • Center Contact Material: bronze
  • Center Contact Plating: gold
  • Dielectric Material: liquid crystal polymer (LCP)
  • Maximum Temperature Range: -40°C to 105°C
