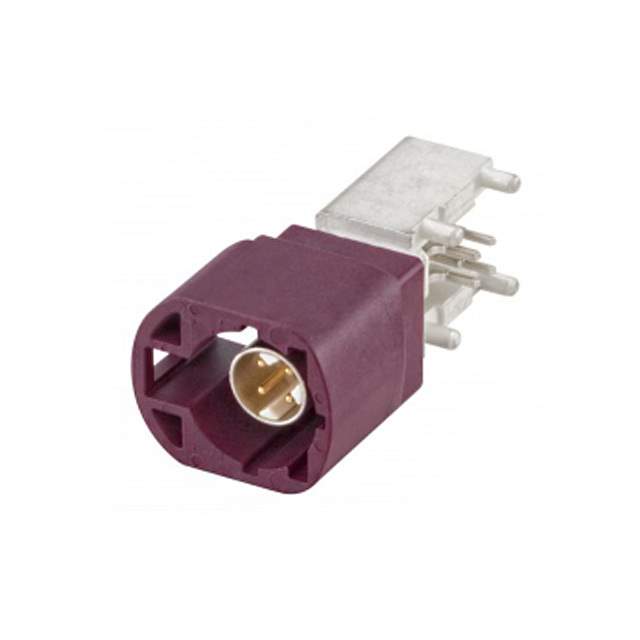

D4S20L-40MA5-D Real Image
Same model may have multiple batches, images only for reference.

D4S20L-40MA5-D

Part No D4S20L-40MA5-D
Manufacturer Rosenberger
Catalog Coaxial Connectors (RF)
Description CONN HSD FAKRA PLUG R/A 100OHM / HSD®, Fakra, Quadraxial Connector Plug, Male Pin 100Ohm Through Hole, Right Angle Solder
Datasheet
D4S20L-40MA5-D Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Connectors, Interconnects>Coaxial Connectors (RF)
Mfr Rosenberger
Series HSD®
Package Tape & Reel
Connector Style HSD®, Fakra, Quadraxial
Connector Type Plug, Male Pin
Contact Termination Solder
Shield Termination Solder
Impedance 100Ohm
Mounting Type Through Hole, Right Angle
Fastening Type Latch Lock
Frequency - Max 2 GHz
Number of Ports 1
Features Code D
Housing Color Violet, Bordeaux
Center Contact Material Bronze
Body Material Brass
Body Finish Nickel
Center Contact Plating Gold
Dielectric Material Liquid Crystal Polymer (LCP)
Temperature Range - Operating -40°C ~ 105°C
Voltage Rating 100 V
Mating Cycles 25
Insertion Loss 0.10dB
Base Product Number D4S20L
MSL Level 1 (Unlimited)
ECCN EAR99
HTSUS 8536.69.4010
Other Names 1868-1526-1,1868-1526-2,1868-1526-6
Standard Package 200
Win Source Part Number 1193992-D4S20L-40MA5-D
Ultra Librarian 3D Model Ultra Librarian D4S20L-40MA5-D CAD Model

Description

The Rosenberger D4S20L-40MA5-D is a male pin plug coaxial connector.

  • Series: HSD
  • Code: D
  • Fastening Type: Latch Lock
  • Packaging: Tape and Reel
  • Contact Termination: Solder
  • Application: Fakra and Quadraxial
  • Voltage Rating: 100 V
  • Maximum Frequency: 2 GHz
  • Housing Color: Violet and Bordeaux
  • Housing Material: Brass
  • Center Contact Material: Bronze
  • Center Contact Plating: Gold
  • Dielectric Material: Liquid Crystal Polymer (LCP)
