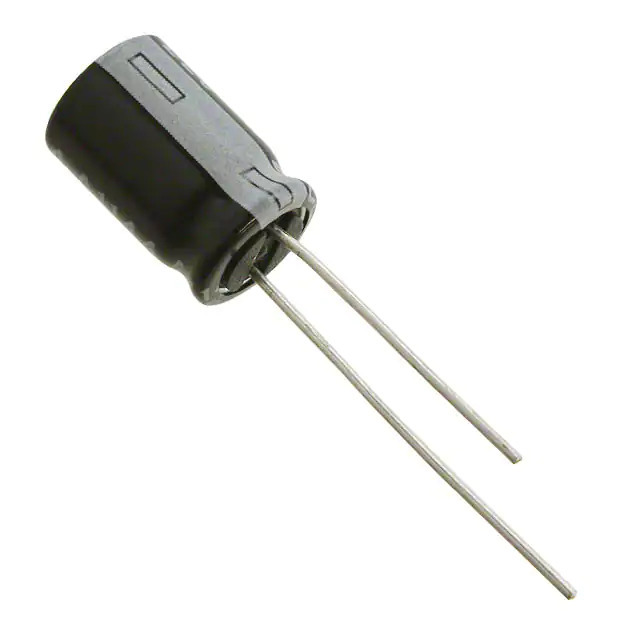

100YXJ47MT78X16 Rubycon
Same model may have multiple batches, images only for reference.

100YXJ47MT78X16

Part No 100YXJ47MT78X16
Manufacturer Rubycon
Catalog Aluminum Capacitors
Description CAP ALUM 47UF 20% 100V RADIAL / 47 µF 100 V Aluminum Electrolytic Capacitors Radial, Can 7000 Hrs @ 105°C
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Capacitors - Aluminum Electrolytic Capacitors
Mfr Rubycon
Series YXJ
Package Tape & Box (TB)
Product Status Active
Capacitance 47 µF
Tolerance ±20%
Voltage - Rated 100 V
ESR (Equivalent Series Resistance) -
Lifetime @ Temp. 7000 Hrs @ 105°C
Temperature Range - Operating -40°C ~ 105°C
Polarization Polar
Ratings -
Applications General Purpose
Ripple Current @ Low Frequency 321.75 mA @ 120 Hz
Impedance 250 mOhms
Lead Spacing 0.138" (3.50mm)
Size / Dimension 0.315" Dia (8.00mm)
Height - Seated (Max) 0.689" (17.50mm)
Surface Mount Land Size -
Mounting Type Through Hole
Package / Case Radial, Can
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8532.22.0020
Win Source Part Number 1357633-100YXJ47MT78X16
Ultra Librarian 3D Model Ultra Librarian 100YXJ47MT78X16 CAD Model

Description

The YXJ series aluminum electrolytic capacitor is a high-quality component designed for general-purpose applications. It is made by Rubycon.

  • Capacitance: 47 µF
  • Voltage Rating: 100 V
  • Tolerance: ±20%
  • Ripple Current (Low Frequency): 321.75 mA @ 120 Hz
  • Lifetime: 7000 hours @ 105°C
  • Polarization: Polarized
  • Package: Radial, Can
  • Mounting Type: Through-Hole
  • Lead Spacing: 0.138" (3.50mm)
  • Size/Dimension: 0.315" (8.00mm) Diameter
  • Height: 0.689" (17.50mm)
  • REACH: Unaffected
  • ECCN: EAR99
