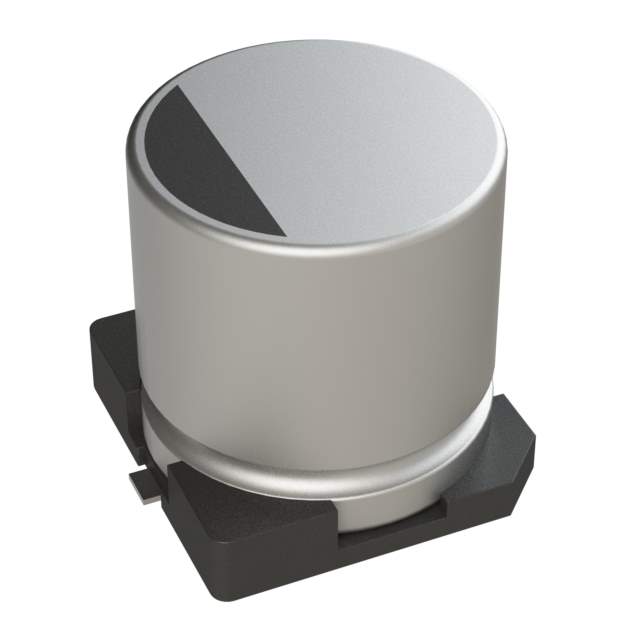

10TPV1000M8X10.5 Real Image
Same model may have multiple batches, images only for reference.

Products specifications Report Issue?

Category Capacitors>Aluminum Electrolytic Capacitors
Mfr Rubycon
Series TPV
Package Bulk
Capacitance 1000 µF
Tolerance ±20%
Voltage - Rated 10 V
ESR (Equivalent Series Resistance) 80mOhm @ 100kHz
Lifetime @ Temp. 2000 Hrs @ 105°C
Temperature Range - Operating -55°C ~ 105°C
Polarization Polar
Ratings AEC-Q200
Applications Automotive
Ripple Current @ Low Frequency 510 mA @ 120 Hz
Ripple Current @ High Frequency 850 mA @ 100 kHz
Dimension 0.315" Dia (8.00mm)
Height - Seated (Max) 0.413" (10.50mm)
Surface Mount Land Size 0.327" L x 0.327" W (8.30mm x 8.30mm)
Mounting SMD (SMT)
Package / Case Radial, Can - SMD
MSL Level 1 (Unlimited)
ECCN EAR99
HTSUS 8532.22.0020
Other Names 1189-10TPV1000M8X10.5
Standard Package 500
Win Source Part Number 1227592-10TPV1000M8X10.5
Ultra Librarian 3D Model Ultra Librarian 10TPV1000M8X10.5 CAD Model

Description

The TPV series aluminum electrolytic capacitor from Rubycon is a surface mount device (SMD) capacitor with a capacitance of 1000μF and a voltage rating of 10V.

  • Capacitance: 1000μF
  • Voltage Rating: 10V
  • Tolerance: ±20%
  • ESR: 80mOhm @ 100kHz
  • Ripple Current: 510 mA @ 120 Hz and 850 mA @ 100 kHz
  • Height: 0.413" (10.50mm)
  • Dimension: 0.315" Dia (8.00mm)
  • Temperature Range: -55°C to 105°C
  • Lifetime: 2000 Hrs @ 105°C
  • Polarized: Yes
  • Package: Radial, Can-SMD
  • Application: Automotive
