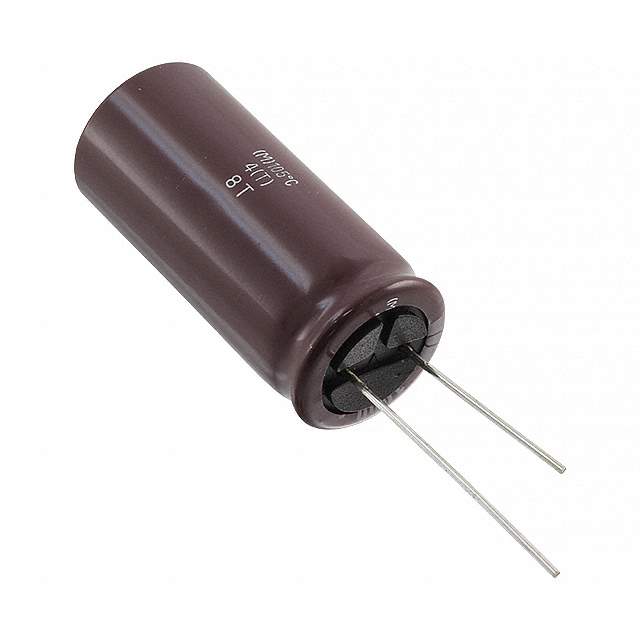

EKYB160ELL123MM40S Real Image
Same model may have multiple batches, images only for reference.

EKYB160ELL123MM40S

Part No EKYB160ELL123MM40S
Manufacturer United Chemi-Con
Catalog Aluminum Capacitors
Description CAP ALUM 12000UF 20% 16V RADIAL / 12000 µF 16 V Aluminum Electrolytic Capacitors Radial, Can 10000 Hrs @ 105°C
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Capacitors>Aluminum Electrolytic Capacitors
Mfr United Chemi-Con
Series KYB
Package Bulk
Product Status Obsolete
Capacitance 12000 µF
Tolerance ±20%
Voltage - Rated 16 V
Lifetime @ Temp. 10000 Hrs @ 105°C
Temperature Range - Operating -40°C ~ 105°C
Polarization Polar
Applications General Purpose
Ripple Current @ Low Frequency 3.995 A @ 120 Hz
Ripple Current @ High Frequency 4.7 A @ 100 kHz
Impedance 11 mOhms
Lead Spacing 0.295" (7.50mm)
Dimension 0.709" Dia (18.00mm)
Height - Seated (Max) 1.634" (41.50mm)
Mounting Type Through Hole
Package / Case Radial, Can
MSL Level Not Applicable
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8532.22.0020
Other Names 565-EKYB160ELL123MM40S,565-3884-ND,565-3884
Standard Package 250
Win Source Part Number 1106039-EKYB160ELL123MM40S
Ultra Librarian 3D Model Ultra Librarian EKYB160ELL123MM40S CAD Model

Description

The United Chemi-Con KYB series aluminum electrolytic capacitor is a reliable and cost-effective solution for general-purpose applications.

  • Manufacturer: United Chemi-Con
  • Series: KYB
  • Type: Aluminum Electrolytic Capacitor
  • Capacitance: 12000 µF
  • Voltage Rating: 16 V
  • Model: EKYB160ELL123MM40S
  • Package: Radial, Can
  • Lead Spacing: 0.295 inches
  • Height: 1.634 inches
  • Diameter: 0.709 inches
  • Lifetime @ 105°C: 10000 hours
  • Ripple Current (Low Frequency) @ 120 Hz: 3.995 A
  • Ripple Current (High Frequency) @ 100 kHz: 4.7 A
  • Polarized: Yes
  • Tolerance: ±20%
  • Mounting: Through-Hole
  • REACH: Unaffected
  • ECCN: EAR99
  • Product Status: Obsolete
  • Alternative Parts (Cross-Reference): EKZN160ELL123MM40S, EKYA160ELL123MLP1S, LP123M016E3P3, EKMH160VSN123MQ30S, LLS1C123MELZ, 16PX12000MEFC18X31.5
