Products specifications Report Issue?

Category Capacitors - Aluminum Electrolytic Capacitors
Mfr Rubycon
Series SLV
Package Tape & Reel
Product Status Active
Capacitance 10 µF
Tolerance ±20%
Voltage - Rated 16 V
ESR (Equivalent Series Resistance) -
Lifetime @ Temp. 5000 Hrs @ 105°C
Temperature Range - Operating -40°C ~ 105°C
Polarization Polar
Ratings -
Applications General Purpose
Ripple Current @ Low Frequency 18 mA @ 120 Hz
Ripple Current @ High Frequency 27 mA @ 10 kHz
Lead Spacing -
Size / Dimension 0.157" Dia (4.00mm)
Height - Seated (Max) 0.240" (6.10mm)
Surface Mount Land Size 0.169" L x 0.169" W (4.30mm x 4.30mm)
Mounting Type Surface Mount
Package / Case Radial, Can - SMD
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8532.22.0020
Win Source Part Number 1360178-16SLV10M4X6.1
Ultra Librarian 3D Model Ultra Librarian 16SLV10M4X6.1 CAD Model

Description

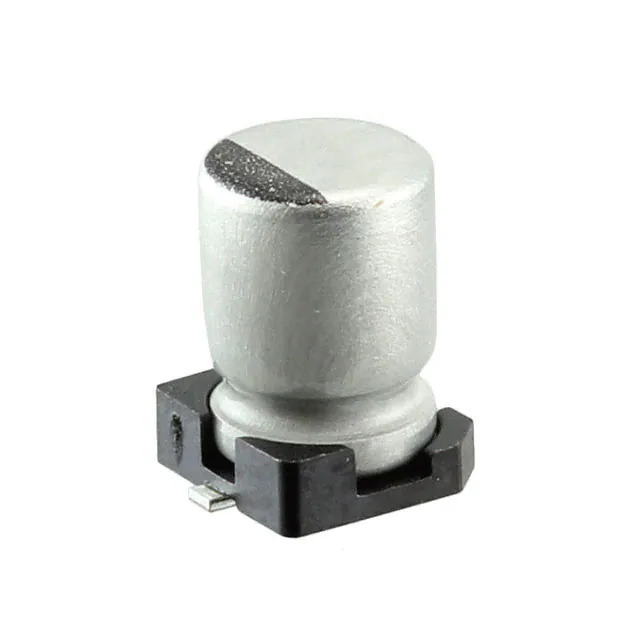

The 1360178-16SLV10M4X6.1 is a surface mount aluminum electrolytic capacitor manufactured by Rubycon. It belongs to the SLV series and is designed for general-purpose applications.

  • Capacitance: 10 μF
  • Tolerance: ±20%
  • Voltage Rating: 16 V
  • Ripple Current (Low Frequency): 18 mA @ 120 Hz
  • Ripple Current (High Frequency): 27 mA @ 10 kHz
  • Lifetime: 5,000 hours @ 105°C
  • Package: Radial, Can - SMD
  • Diameter: 4.00 mm
  • Height: 6.10 mm
  • Surface Mount Land Size: 4.30 mm x 4.30 mm
  • REACH: Unaffected
  • Polarization: Polarized
  • Series: SLV
  • Manufacturer: Rubycon
