Same model may have multiple batches, images only for reference.

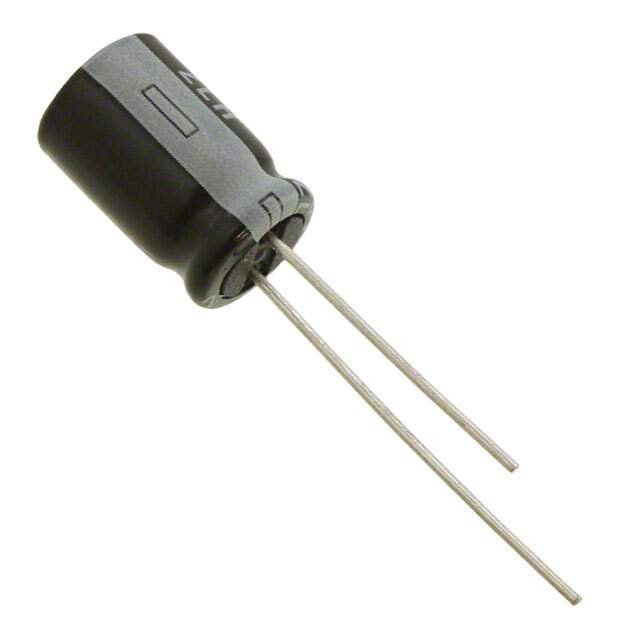

16ZLH470MEFC8X11.5 Real Image
Same model may have multiple batches, images only for reference.

16ZLH470MEFC8X11.5

Part No 16ZLH470MEFC8X11.5
Manufacturer Rubycon
Catalog Aluminum Capacitors
Description CAP ALUM 470UF 20% 16V RADIAL / Cap Aluminum Lytic 470uF 16V 20% (8 X 11.5mm) Radial 3.5mm 945mA 8000h 105°C
Datasheet
16ZLH470MEFC8X11.5 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Capacitors
Manufacturer Rubycon
Series ZLH
Packaging Bulk
Capacitance 470μF
Tolerance ±20%
Voltage Rating DC 16V
Lifetime @ Temp. 8000 Hrs @ 105°C
Operating Temperature Range -40°C ~ 105°C
Polarization Polar
Applications General
Ripple Current - Low Frequency 519.75mA @ 120Hz
Ripple Current - High Frequency 945mA @ 100kHz
Impedance 56 mOhm
Lead Spacing 0.138" (3.50mm)
Dimension 0.315" Dia (8.00mm)
Height - Seated (Maximum) 0.512" (13.00mm)
Mounting Style Through Hole
Package Radial, Can
Win Source Part Number 777772-16ZLH470MEFC8X11.5
Popularity Medium
Supply and Demand Status Limited
Family Name ZLH
Introduction Date October 14, 2005
ECCN EAR99
Country of Origin Indonesia, Japan
Estimated EOL Date 2027
Ultra Librarian 3D Model Ultra Librarian 16ZLH470MEFC8X11.5 CAD Model

Description

The Rubycon ZLH series capacitor is designed for general applications.

  • Capacitance: 470μF
  • Voltage Rating: 16V
  • Impedance: 56 mOhm
  • Lifetime: 8000 hours @ 105°C
  • Polarization: Polarized
  • Mounting Style: through hole
  • Package/Case Type: radial, can
  • Temperature Range: -40°C to 105°C
