35PX220MEFC8X11.5 Rubycon

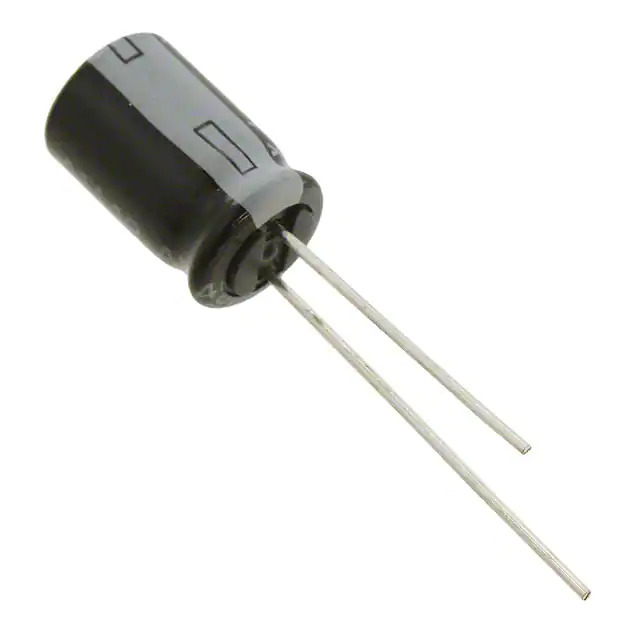

Same model may have multiple batches, images only for reference.

Products specifications Report Issue?

Category Capacitors - Aluminum Electrolytic Capacitors
Mfr Rubycon
Series PX
Package Bulk
Product Status Active
Capacitance 220 µF
Tolerance ±20%
Voltage - Rated 35 V
ESR (Equivalent Series Resistance) -
Lifetime @ Temp. 1000 Hrs @ 105°C
Temperature Range - Operating -55°C ~ 105°C
Polarization Polar
Ratings -
Applications General Purpose
Ripple Current @ Low Frequency 300 mA @ 120 Hz
Ripple Current @ High Frequency 360 mA @ 10 kHz
Lead Spacing 0.138" (3.50mm)
Size / Dimension 0.315" Dia (8.00mm)
Height - Seated (Max) 0.512" (13.00mm)
Surface Mount Land Size -
Mounting Type Through Hole
Package / Case Radial, Can
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8532.22.0020
Win Source Part Number 1357734-35PX220MEFC8X11.5
Ultra Librarian 3D Model Ultra Librarian 35PX220MEFC8X11.5 CAD Model

Description

The Rubycon PX series is a bulk aluminum electrolytic capacitor with a capacitance of 220 µF and a voltage rating of 35 V.

  • Series: PX
  • Capacitance: 220 µF
  • Voltage Rating: 35 V
  • Operating Temperature: -55°C to 105°C
  • Tolerance: ±20%
  • Ripple Current - Low Frequency: 300 mA @ 120 Hz
  • Ripple Current - High Frequency: 360 mA @ 10 kHz
  • Lifetime: 1000 Hours @ 105°C
  • Polarization: Polarized
  • Size: 0.315" (8.00mm) in diameter
  • Height: 0.512" (13.00mm)
  • Applications: General-Purpose
  • Mounting Type: Through Hole
  • Status: Active
  • REACH: Unaffected
