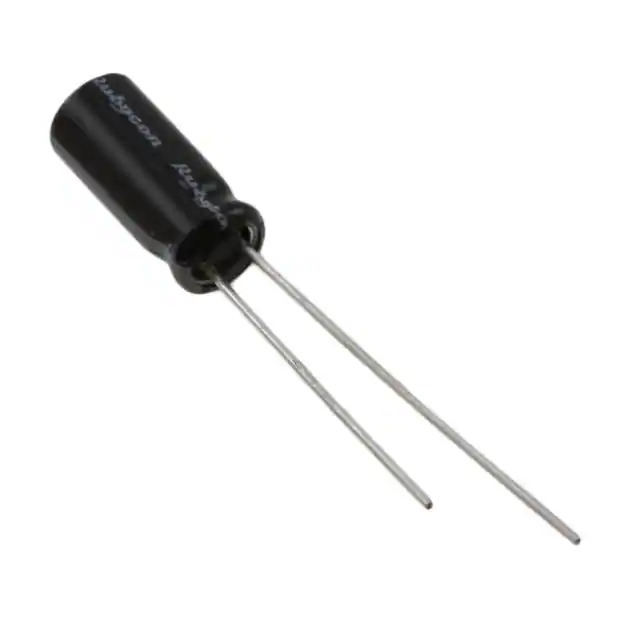

35PX47MEFC5X11 Rubycon
Same model may have multiple batches, images only for reference.

Products specifications Report Issue?

Category Capacitors - Aluminum Electrolytic Capacitors
Mfr Rubycon
Series PX
Package Bulk
Product Status Active
Capacitance 47 µF
Tolerance ±20%
Voltage - Rated 35 V
ESR (Equivalent Series Resistance) -
Lifetime @ Temp. 1000 Hrs @ 105°C
Temperature Range - Operating -55°C ~ 105°C
Polarization Polar
Ratings -
Applications General Purpose
Ripple Current @ Low Frequency 100 mA @ 120 Hz
Ripple Current @ High Frequency 150 mA @ 10 kHz
Lead Spacing 0.079" (2.00mm)
Size / Dimension 0.197" Dia (5.00mm)
Height - Seated (Max) 0.492" (12.50mm)
Surface Mount Land Size -
Mounting Type Through Hole
Package / Case Radial, Can
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8532.22.0020
Win Source Part Number 1357618-35PX47MEFC5X11
Ultra Librarian 3D Model Ultra Librarian 35PX47MEFC5X11 CAD Model

Description

The Rubycon PX series is a reliable aluminum electrolytic capacitor designed for general-purpose applications.

  • Capacitance: 47 µF
  • Voltage Rating: 35 V
  • Temperature Range: -55°C to 105°C
  • Package: Radial, Can
  • Mounting: Through Hole
  • Lead Spacing: 0.079" (2.00mm)
  • Size: 0.197" Dia (5.00mm)
  • Seated Height: 0.492" (12.50mm) Max
  • Ripple Current (Low Frequency): 100 mA @ 120 Hz
  • Ripple Current (High Frequency): 150 mA @ 10 kHz
  • Lifetime: 1000 hours @ 105°C
  • Manufacturer: Rubycon
  • Status: Active
