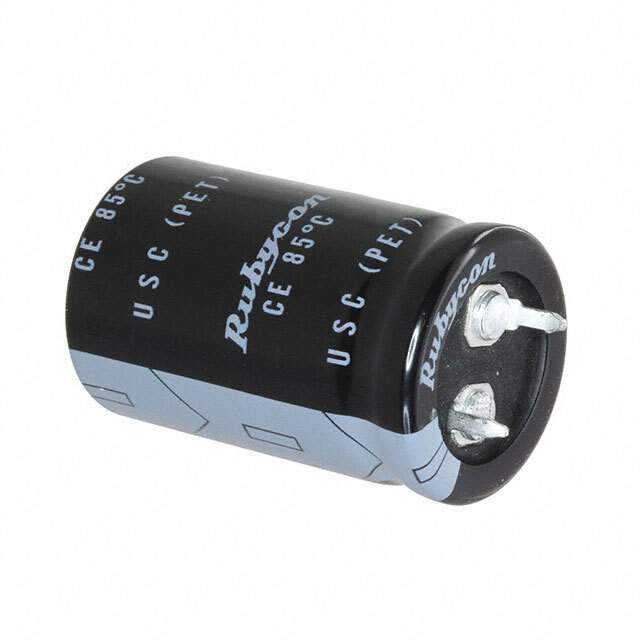

35USC22000MEFCSN35X40 Real Image
Same model may have multiple batches, images only for reference.

Products specifications Report Issue?

Category Capacitors - Aluminum Electrolytic Capacitors
Mfr Rubycon
Series USC
Package Bulk
Capacitance 22000 µF
Tolerance ±20%
Voltage - Rated 35 V
Lifetime @ Temp. 3000 Hrs @ 85°C
Temperature Range - Operating -40°C ~ 85°C
Polarization Polar
Applications General Purpose
Ripple Current @ Low Frequency 6.38 A @ 120 Hz
Ripple Current @ High Frequency 7.337 A @ 10 kHz
Lead Spacing 0.394" (10.00mm)
Size / Dimension 1.378" Dia (35.00mm)
Height - Seated (Max) 1.654" (42.00mm)
Mounting Type Through Hole
Package / Case Radial, Can - Snap-In
Standard Package 100
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8532.22.0040
Win Source Part Number 1350290-35USC22000MEFCSN35X40
Ultra Librarian 3D Model Ultra Librarian 35USC22000MEFCSN35X40 CAD Model

Description

The 35USC22000MEFCSN35X40 is an aluminum electrolytic capacitor from Rubycon.

  • Package: Radial, Can-Snap-In
  • Diameter: 1.378" (35.00mm)
  • Height: 1.654" (42.00mm)
  • Capacitance: 22000μF
  • Tolerance: ±20%
  • Voltage Rating: 35V
  • Ripple Current: 6.38A @ 120Hz
  • Ripple Current: 7.337A @ 10kHz
  • Series: 35USC
  • Application: General-Purpose
  • Operating Temperature: -40°C to 85°C
  • Lead Spacing: 0.394" (10.00mm)
  • Polarized: Yes
