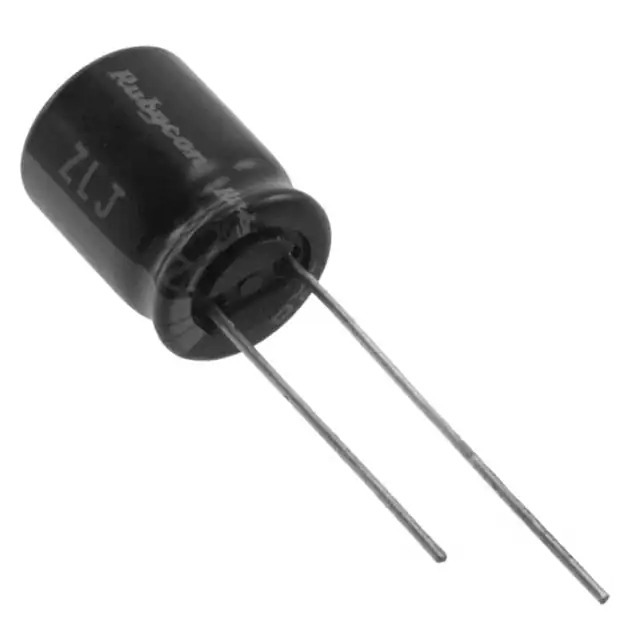

Product photo
Same model may have multiple batches, images only for reference.

Products specifications Report Issue?

Category Capacitors - Aluminum Electrolytic Capacitors
Mfr Rubycon
Series ZLJ
Package Tape & Box (TB)
Product Status Active
Capacitance 560 µF
Tolerance ±20%
Voltage - Rated 35 V
ESR (Equivalent Series Resistance) -
Lifetime @ Temp. 10000 Hrs @ 105°C
Temperature Range - Operating -40°C ~ 105°C
Polarization Polar
Ratings -
Applications General Purpose
Ripple Current @ Low Frequency 1.375 A @ 120 Hz
Ripple Current @ High Frequency 2.5 A @ 100 kHz
Impedance 28 mOhms
Lead Spacing 0.197" (5.00mm)
Size / Dimension 0.394" Dia (10.00mm)
Height - Seated (Max) 0.866" (22.00mm)
Surface Mount Land Size -
Mounting Type Through Hole
Package / Case Radial, Can
MSL Level Not Applicable
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8532.22.0020
Win Source Part Number 1358189-35ZLJ560MT810X20
Ultra Librarian 3D Model Ultra Librarian 35ZLJ560MT810X20 CAD Model

Description

The Rubycon ZLJ series aluminum electrolytic capacitor is a high-quality component suitable for general-purpose applications. With a capacitance of 560 µF and a voltage rating of 35 V, this capacitor provides reliable performance and stability.

  • Capacitance: 560 µF
  • Voltage Rating: 35 V
  • Tolerance: ±20%
  • Operating Temperature: -40°C to 105°C
  • Lifetime: 10,000 hours @ 105°C
  • Ripple Current (Low Frequency): 1.375 A @ low frequency
  • Ripple Current (High Frequency): 2.5 A @ high frequency
  • Mounting Type: Through-hole
  • Package: Radial can
