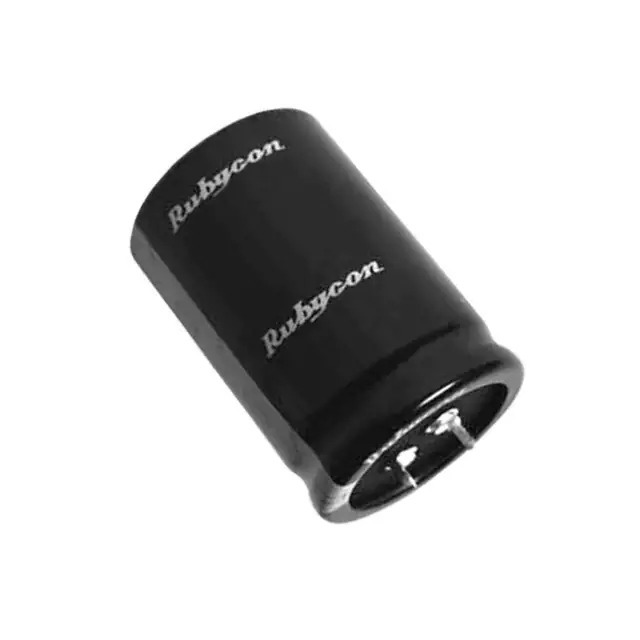

Same model may have multiple batches, images only for reference.

420MXK680MEFCSN30X50

Name: 420MXK680MEFCSN30X50
Brand: Rubycon
SKU: 1360778
Availability: InStock
Rating: 4.91 (5 reviews)

Get a Quote

This model is a standard, industry-grade component frequently used in electronic manufacturing.

Part No	420MXK680MEFCSN30X50
Manufacturer	Rubycon
Catalog	Aluminum Capacitors
Description	CAP ALUM 680UF 20% 420V SNAP / 680 µF 420 V Aluminum Electrolytic Capacitors Radial, Can - Snap-In 3000 Hrs @ 105°C
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Category	Capacitors - Aluminum Electrolytic Capacitors
Mfr	Rubycon
Series	MXK
Package	Tray
Product Status	Active
Capacitance	680 µF
Tolerance	±20%
Voltage - Rated	420 V
ESR (Equivalent Series Resistance)	-
Lifetime @ Temp.	3000 Hrs @ 105°C
Temperature Range - Operating	-25°C ~ 105°C
Polarization	Polar
Ratings	-
Applications	General Purpose
Ripple Current @ Low Frequency	2.5 A @ 120 Hz
Ripple Current @ High Frequency	3.5 A @ 10 kHz
Lead Spacing	0.394" (10.00mm)
Size / Dimension	1.181" Dia (30.00mm)
Height - Seated (Max)	2.047" (52.00mm)
Surface Mount Land Size	-
Mounting Type	Through Hole
Package / Case	Radial, Can - Snap-In
MSL Level	Not Applicable
REACH Status	REACH Unaffected
ECCN	EAR99
HTSUS	8532.22.0040
Win Source Part Number	1360778-420MXK680MEFCSN30X50
Ultra Librarian 3D Model	Ultra Librarian 420MXK680MEFCSN30X50 CAD Model

Alternative Products

Description

The 1360778-420MXK680MEFCSN30X50 is a radial, snap-in aluminum electrolytic capacitor from the MXK series manufactured by Rubycon.

Capacitance: 680 µF
Voltage Rating: 420 V
Tolerance: ±20%
Temperature Range: -25°C to 105°C
Ripple Current (Low Frequency): 2.5 A @ 120 Hz
Ripple Current (High Frequency): 3.5 A @ 10 kHz
Lead Spacing: 0.394" (10.00mm)
Diameter: 1.181" (30.00mm)
Seated Height: 2.047" (52.00mm)
REACH: Unaffected
ECCN: EAR99
