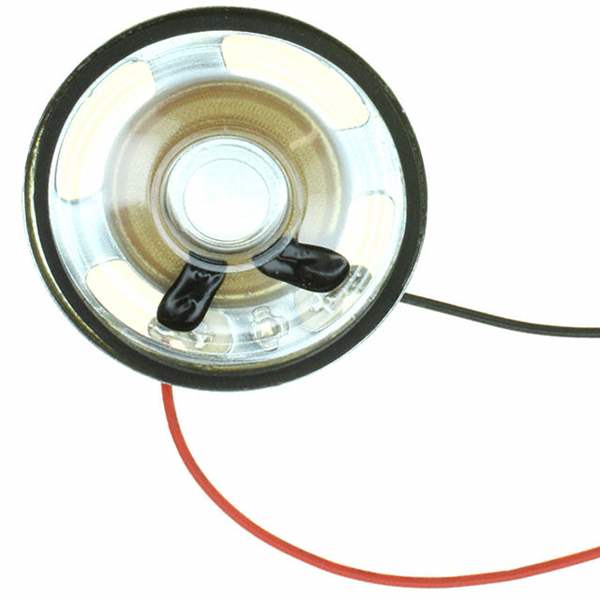

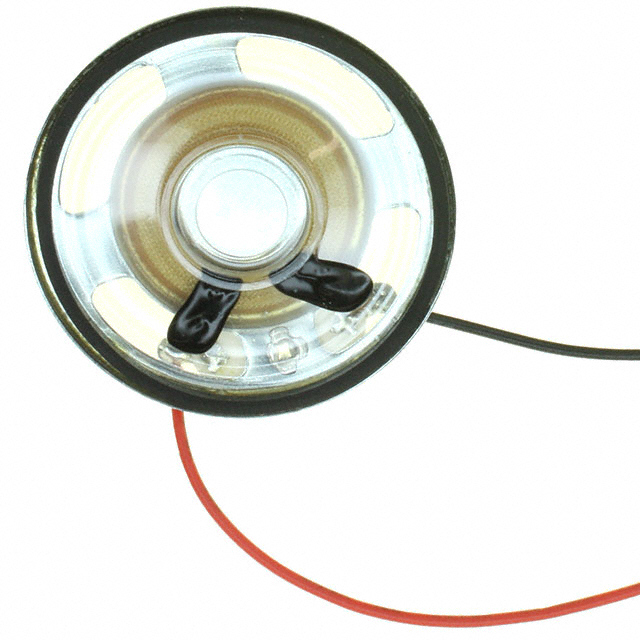

CEP-1126 Same Sky – Price, Stock & Datasheet
Same model may have multiple batches, images only for reference.

CEP-1126

Part No CEP-1126
Manufacturer Same Sky
Catalog Alarms, Buzzers, and Sirens
Description BUZZER PIEZO 10V 29.50MM FLANGE
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Driver Circuitry Transducer, Externally Driven
Input Type peak-peak Signal
Voltage - Rated 10 V
Voltage Range 30V (Max)
Technology Piezo
Operating Mode Single Tone
Sound Pressure Level (SPL) 92dB @ 10V, 10cm
Current - Supply 10mA
Port Location Top
Temperature Range - Operating -30°C ~ 85°C
Mounting Type Panel Mount, Flange
Termination Wire Leads
Size / Dimension 1.161" Dia (29.50mm)
Height - Seated (Max) 0.224\
Package Bag
Supply and Demand Status Shortage
Win Source Part Number 1547188-CEP-1126
Ultra Librarian 3D Model Ultra Librarian CEP-1126 CAD Model
