Products specifications

Driver Circuitry Indicator, Internally Driven
Input Type DC
Voltage - Rated 12 V
Voltage Range 6 ~ 14V
Frequency 2.8kHz
Technology Piezo
Operating Mode Single Tone
Sound Pressure Level (SPL) 85dB @ 12V, 30cm
Current - Supply 35mA
Port Location Top
Temperature Range - Operating -30°C ~ 85°C
Ingress Protection IP67 - Dust Tight, Waterproof
Mounting Type Panel Mount, Flange
Termination Wire Leads
Size / Dimension 1.008" Dia (25.60mm)
Height - Seated (Max) 0.650\
Package Box
Supply and Demand Status Normal
Win Source Part Number 1546636-CPE-267

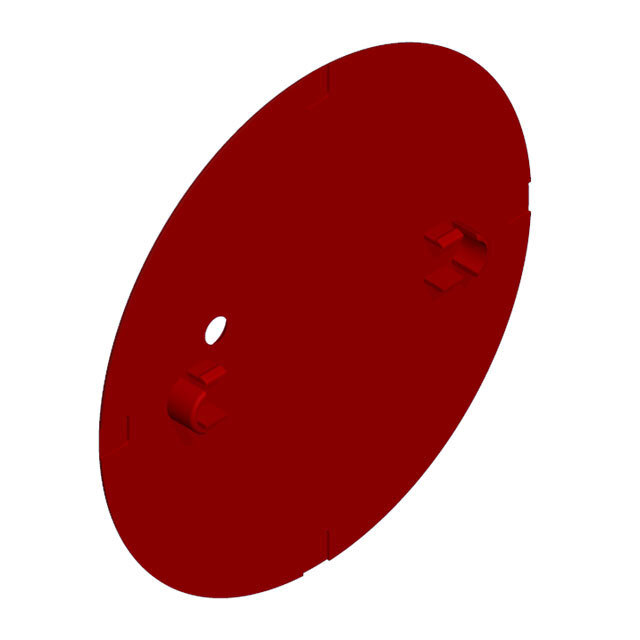

Ultra Librarian 3D Model Ultra Librarian CPE-267 CAD Model
