Same model may have multiple batches, images only for reference.

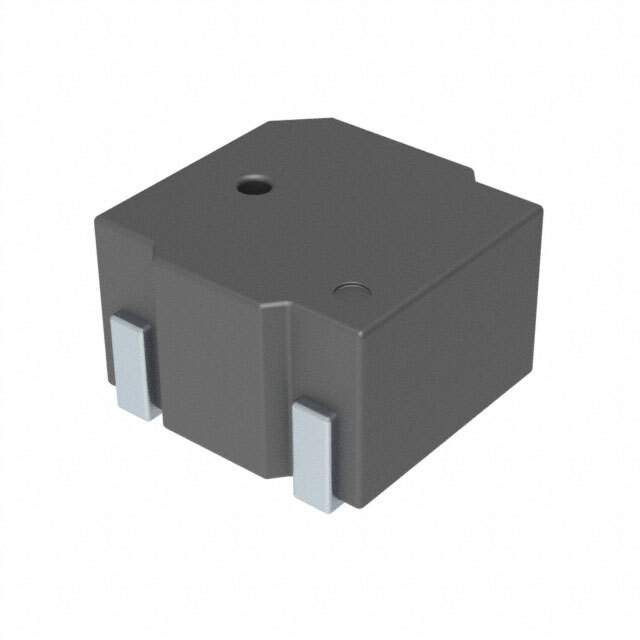

AST0540MW-3.6TRQ Real Image
Same model may have multiple batches, images only for reference.

AST0540MW-3.6TRQ

Part No AST0540MW-3.6TRQ
Manufacturer Mallory Sonalert Products Inc.
Catalog Alarms, Buzzers, and Sirens
Description BUZZER MAGNETIC 3.6V 5X5MM SMD / Buzzers Transducer, Externally Driven Magnetic 3.6 V 110mA 4kHz 80dB @ 3.6V, 10cm Surface Mount Solder Pads
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Audio Products - Alarms, Buzzers, and Sirens
Mfr Mallory Sonalert Products Inc.
Series AST
Package Tape & Reel
Driver Circuitry Transducer, Externally Driven
Input Type peak-peak Signal
Voltage - Rated 3.6 V
Voltage Range 2 ~ 4V
Frequency 4kHz
Technology Magnetic
Operating Mode Single Tone
Sound Pressure Level (SPL) 80dB @ 3.6V, 10cm
Current - Supply 110mA
Port Location Top
Temperature Range - Operating -20°C ~ 60°C
Mounting Type Surface Mount
Termination Solder Pads
Size / Dimension 0.197" L x 0.197" W (5.00mm x 5.00mm)
Height - Seated (Max) 0.118" (3.00mm)
Standard Package 1,000
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8531.80.9041
Win Source Part Number 1349457-AST0540MW-3.6TRQ
Ultra Librarian 3D Model Ultra Librarian AST0540MW-3.6TRQ CAD Model

Description

The Mallory Sonalert Products Inc. AST0540MW-3.6TRQ is a magnetic audio alarm from the AST series.

  • Manufacturer: Mallory Sonalert Products Inc.
  • Voltage Rating: 3.6V
  • Voltage Range: 2V ~ 4V
  • Frequency: 4kHz
  • SPL @ Distance: 80dB @ 3.6V, 10cm
  • Technology: Magnetic
  • Operating Mode: Single Tone
  • Termination: Solder Pads
  • Operating Temperature: -20°C ~ 60°C
  • Standard Package: 1,000
  • ECCN: EAR99
  • HTSUS: 8531.80.9041
  • Type: Externally Driven Transducer
  • Mounting Type: Surface Mount
