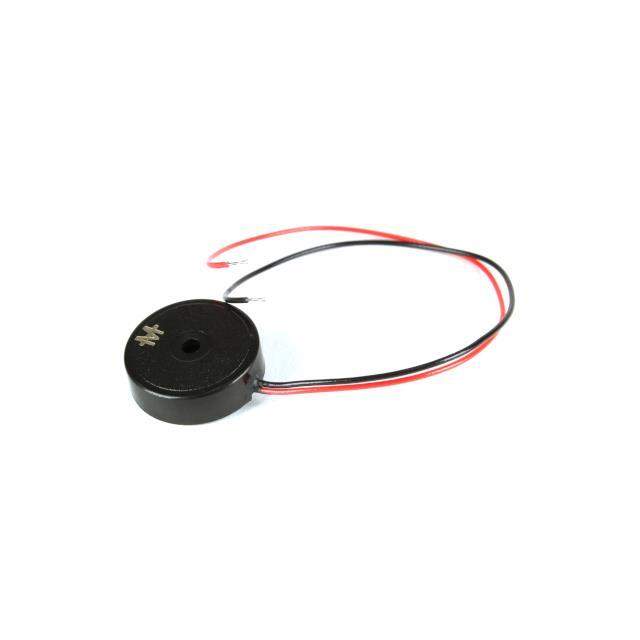

PT-1550WQ Real Image
Same model may have multiple batches, images only for reference.

PT-1550WQ

Part No PT-1550WQ
Manufacturer Mallory Sonalert Products Inc.
Catalog Alarms, Buzzers, and Sirens
Description AUDIO PIEZO TRANSDUCER 1-25V SMD / Audio Indicator Piezo 25Vp-p 1.5mA 5Vp-p 80dBA 4500Hz to 5500Hz Through Hole Pin Bulk
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Audio Products
Manufacturer Mallory Sonalert Products Inc.
Series PT
Packaging Bulk
Driver Circuitry Transducer, Externally Driven
Input Type peak-peak Signal
Voltage Rating DC 5V
Voltage Range 1 ~ 25V
Frequency 5kHz
Technology Piezo
Operating Mode Single Tone
Sound Pressure Level (SPL) 80dB @ 5V, 10cm
Operating Supply Current 1.5mA
Port Location Top
Operating Temperature Range -20°C ~ 90°C
Mounting Custom
Termination Wire Leads
Dimension 0.650" Dia (16.50mm)
Height - Seated (Maximum) 0.165" (4.20mm)
Win Source Part Number 796025-PT-1550WQ
Popularity Medium
Supply and Demand Status Limited
Family Name PT-1550WQ
Introduction Date July 15, 2008
ECCN EAR99
Estimated EOL Date 2027
Ultra Librarian 3D Model Ultra Librarian PT-1550WQ CAD Model

Description

The Mallory Sonalert Products Inc. PT-1550WQ is a piezo technology audio product with a frequency of 5kHz and a voltage range of 1-25V.

  • Frequency: 5kHz
  • Voltage Range: 1-25V
  • Tone Mode: Single Tone
  • Sound Pressure Level (SPL): 80dB @ 5V, 10cm
  • Win Source Part Number: 796025
  • Packaging: Bulk
  • Termination: Wire Leads
  • Height-Seated Maximum: 0.165" (4.20mm)
  • Dimension: 0.650" Dia (16.50mm)
  • Supply and Demand Status: Limited
