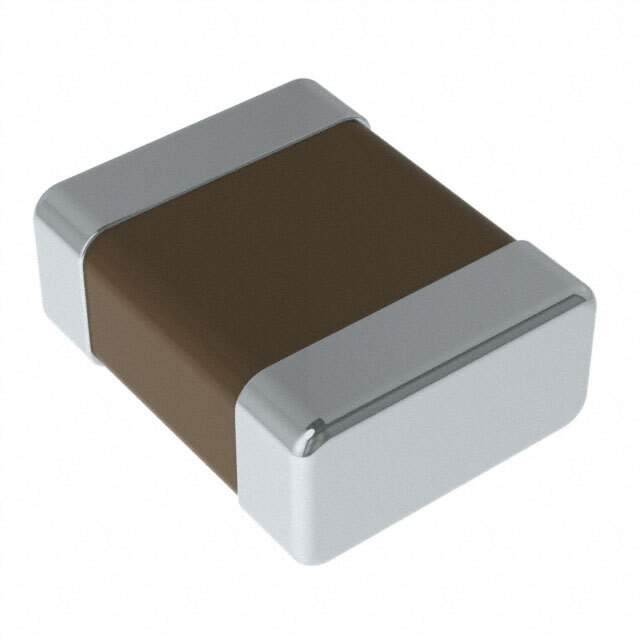

CIG22L6R8MNE Real Image
Same model may have multiple batches, images only for reference.

CIG22L6R8MNE

Part No CIG22L6R8MNE
Manufacturer Samsung
Catalog Fixed Inductors
Description FIXED IND 6.8UH 800MA 203 MOHM
Datasheet
CIG22L6R8MNE Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Inductors, Coils, Chokes
Manufacturer Samsung Electro-Mechanics America, Inc.
Packaging Reel - TR
Status Active
Type Multilayer
Inductance 6.8μH
Tolerance ±20%
Current Rating 800mA
DC Resistance (DCR) 203 mOhm
Temperature Range - Operating -40°C to 125°C
Frequency - Test 1MHz
Mounting SMD (SMT)
Dimension 0.098" L x 0.079" W (2.50mm x 2.00mm)
Win Source Part Number 013118-CIG22L6R8MNE
Popularity Medium
Supply and Demand Status Balance
Ultra Librarian 3D Model Ultra Librarian CIG22L6R8MNE CAD Model

Description

Product Overview

The CIG22L6R8MNE inductor is crafted for applications requiring high efficiency and reliability. Its advanced design seamlessly integrates into numerous electronic circuits, offering exceptional inductance characteristics.

Features and Benefits

  • Low DC resistance for increased efficiency.
  • High thermal endurance to withstand various operating conditions.
  • Compact form factor suitable for cutting-edge technology.
  • Durable build quality for long-lasting operation.

Applications

  • Switching power supplies
  • LED drivers
  • Automotive electronics
  • Portable devices

The CIG22L6R8MNE is particularly suited for projects emphasizing energy efficiency and space-saving without sacrificing performance.
