Same model may have multiple batches, images only for reference.

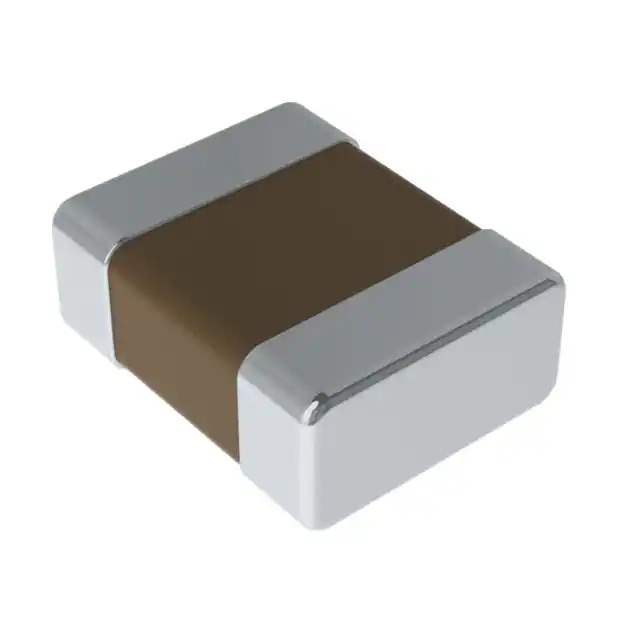

CIGT201610EHR47MNE Real Image
Same model may have multiple batches, images only for reference.

CIGT201610EHR47MNE

Part No CIGT201610EHR47MNE
Manufacturer Samsung
Catalog Fixed Inductors
Description FIXED IND 470NH 4.8A 22MOHM SMD
Datasheet
CIGT201610EHR47MNE Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Inductors, Coils, Chokes - Fixed Inductors
Mfr Samsung
Series CIGT
Package Tape & Reel
Product Status Active
Type Thin Film
Material - Core Metal Composite
Inductance 470 nH
Tolerance ±20%
Current Rating (Amps) 4.8 A
Current - Saturation (Isat) 5.9A
Shielding Unshielded
DC Resistance (DCR) 22mOhm Max
Temperature Range - Operating -40°C ~ 125°C
Inductance Frequency - Test 1 MHz
Mounting Type Surface Mount
Package / Case 0806 (2016 Metric)
Supplier Device Package 0806 (2016 Metric)
Size / Dimension 0.079" L x 0.063" W (2.00mm x 1.60mm)
Height - Seated (Max) 0.039" (1.00mm)
Standard Package 3,000 pcs
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8504.50.8000
Win Source Part Number 844015-CIGT201610EHR47MNE
Ultra Librarian 3D Model Ultra Librarian CIGT201610EHR47MNE CAD Model

Description

The 844015-CIGT201610EHR47MNE is a fixed inductor from Samsung, part of the CIGT series.

  • Manufacturer: Samsung
  • Series: CIGT
  • Type: Fixed Inductor, Thin Film
  • Inductance: 470 nH
  • Tolerance: ±20%
  • Height (Max): 0.039" (1.00mm)
  • Shielded: Unshielded
  • DCR (Max): 22mOhm
  • Current Rating: 4.8A
  • Operating Temperature: -40°C to 125°C
  • Package Type: Tape and Reel
  • Mounting Type: Surface Mountable
  • Standard Package: 3,000 pieces
  • Applications: Power supplies, filters, and RF circuits
