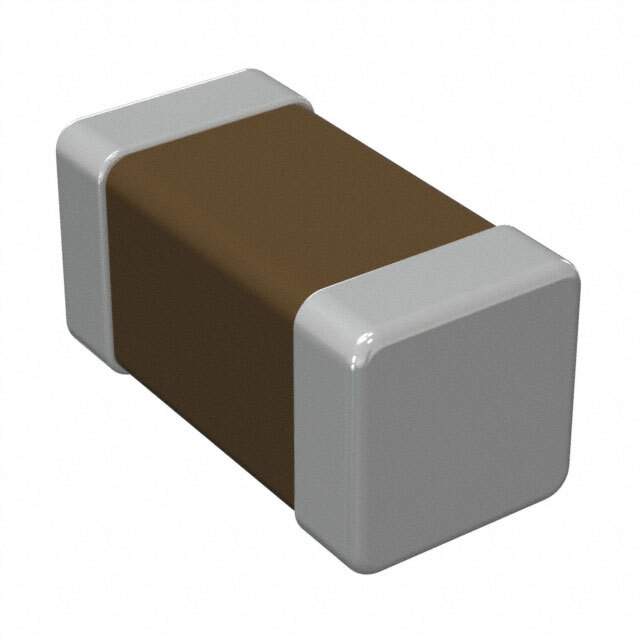

Same model may have multiple batches, images only for reference.

CIL10NR33JNC

Get a Quote

Part No	CIL10NR33JNC
Manufacturer	Samsung
Catalog	Fixed Inductors
Description	FIXED IND 330NH 35MA 850MOHM SMD / 330 nH Shielded Inductor 35 mA 850mOhm Max 0603 (1608 Metric)
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Category	Inductors, Coils, Chokes>Fixed Inductors
Manufacturer	Samsung Electro-Mechanics
Packaging	Reel - TR
Product Status	Obsolete
Material - Core	Ferrite
Inductance	330 nH
Tolerance	±5%
Current Rating (Amps)	35 mA
Shielding	Shielded
DC Resistance (DCR)	850mOhm Max
Q @ Freq	15 @ 25MHz
Frequency - Self Resonant	125MHz
Temperature Range - Operating	-40°C ~ 85°C
Inductance Frequency - Test	25 MHz
Mounting	Surface Mount
Case / Package	0603 (1608 Metric)
Supplier Device Package	0603 (1608 Metric)
Size / Dimension	0.063" L x 0.031" W (1.60mm x 0.80mm)
Height - Seated (Max)	0.037" (0.95mm)
RoHS Status	ROHS3 Compliant
REACH Status	REACH Unaffected
ECCN	EAR99
HTSUS	8504.50.8000
Standard Package	4,000
Win Source Part Number	1327350-CIL10NR33JNC
Ultra Librarian 3D Model	Ultra Librarian CIL10NR33JNC CAD Model

Alternative Products

Description

The Samsung Electro-Mechanics Fixed Inductor is a surface mount inductor with a size/dimension of 0.063" L x 0.031" W (1.60mm x 0.80mm).

Shielding: Shielded
Inductance: 330 nH
Device Package: 0603 (1608 Metric)
Standard Package: 4,000
Tolerance: ±5%
Material-Core: Ferrite
DC Resistance (DCR): 850mOhm Max
Current Rating (Amps): 35 mA
Temperature Range: -40°C to 85°C
Product Status: Obsolete
ROHS3 Compliant: Yes
ECCN: EAR99
