Same model may have multiple batches, images only for reference.

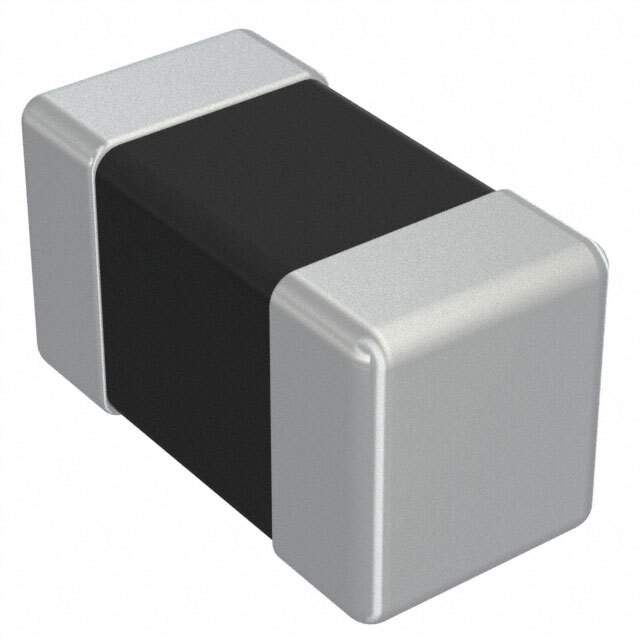

CIM05U100NC Real Image
Same model may have multiple batches, images only for reference.

CIM05U100NC

Part No CIM05U100NC
Manufacturer Samsung
Catalog Ferrite Beads and Chips
Description FERRITE BEAD 10 OHM 0402 1LN / 10 Ohms @ 100 MHz 1 Ferrite Bead 0402 (1005 Metric) 1.2A 50mOhm
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Filters>Ferrite Beads and Chips
Manufacturer Samsung Electro-Mechanics
Packaging Reel - TR
Product Status Obsolete
Number of Lines 1
Impedance @ Frequency 10 Ohms @ 100 MHz
Current Rating (Max) 1.2A
DC Resistance (DCR) (Max) 50mOhm
Temperature Range - Operating -55°C ~ 125°C
Case / Package 0402 (1005 Metric)
Mounting Surface Mount
Height (Max) 0.022" (0.55mm)
Size / Dimension 0.039" L x 0.020" W (1.00mm x 0.50mm)
RoHS Status ROHS3 Compliant
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8548.00.0000
Standard Package 10,000
Win Source Part Number 1328076-CIM05U100NC
Ultra Librarian 3D Model Ultra Librarian CIM05U100NC CAD Model

Description

The Samsung Electro-Mechanics Ferrite Beads and Chips are high-quality filters that come in a reel - TR packaging.

  • Packaging: reel - TR
  • Size/Dimension: 0.039" L x 0.020" W (1.00mm x 0.50mm)
  • Current Rating (max): 1.2A
  • Height (max): 0.022" (0.55mm)
  • Impedance @ Frequency: 10 Ohms @ 100 MHz
  • DC Resistance (DCR) (max): 50mOhm
  • Temperature Range - Operating: -55°C ~ 125°C
  • Case/Package: 0402 (1005 Metric)
  • Product Status: Obsolete
  • RoHS Status: ROHS3 Compliant
