Same model may have multiple batches, images only for reference.

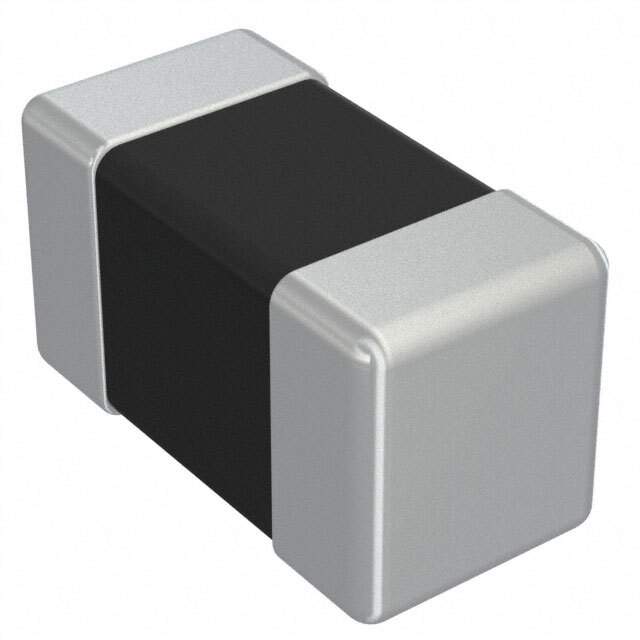

CIM05U102NC Real Image
Same model may have multiple batches, images only for reference.

CIM05U102NC

Part No CIM05U102NC
Manufacturer Samsung
Catalog Ferrite Beads and Chips
Description FERRITE BEAD 1 KOHM 0402 1LN  /  1 kOhms @ 100 MHz 1 Ferrite Bead 0402 (1005 Metric) 300mA 800mOhm
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Filters>Ferrite Beads and Chips
Mfr Samsung Electro-Mechanics
Series CIM05
Package Tape & Reel
Product Status Obsolete
Number of Lines 1
Impedance @ Frequency 1 kOhms @ 100 MHz
Current Rating (Max) 300mA
DC Resistance (DCR) (Max) 800mOhm
Temperature Range - Operating -55°C ~ 125°C
Package / Case 0402 (1005 Metric)
Mounting SMD (SMT)
Height (Max) 0.022" (0.55mm)
Dimension 0.039" L x 0.020" W (1.00mm x 0.50mm)
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8548.00.0000
Other Names 1276-6336-6,1276-6336-2,1276-6336-1
Standard Package 10,000
Win Source Part Number 1111282-CIM05U102NC
Ultra Librarian 3D Model Ultra Librarian CIM05U102NC CAD Model

Description

The Samsung Electro-Mechanics CIM05 series ferrite beads and chips are a family of filters that are designed to provide reliable performance.

  • Manufacturer: Samsung Electro-Mechanics
