Same model may have multiple batches, images only for reference.

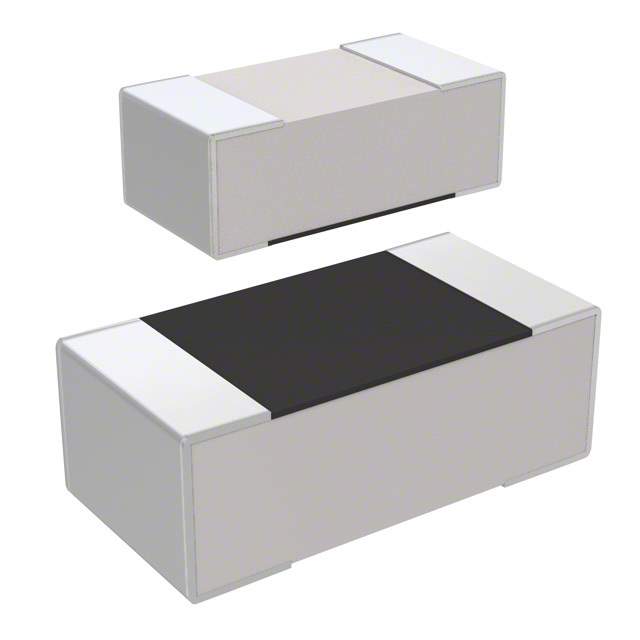

RC1608F224CS Real Image
Same model may have multiple batches, images only for reference.

RC1608F224CS

Part No RC1608F224CS
Manufacturer Samsung
Catalog Chip Resistor - Surface Mount
Description RES SMD 220K OHM 1% 1/10W 0603  /  220 kOhms ±1% 0.1W, 1/10W Chip Resistor 0603 (1608 Metric) Moisture Resistant Thick Film
Datasheet
RC1608F224CS Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Resistors>Chip Resistor - Surface Mount
Mfr Samsung Electro-Mechanics
Series RC
Package Tape & Reel
Resistance 220 kOhms
Tolerance ±1%
Power (Watts) 0.1W, 1/10W
Composition Thick Film
Features Moisture Resistant
Temperature Coefficient ±100ppm/°C
Temperature Range - Operating -55°C ~ 155°C
Package / Case 0603 (1608 Metric)
Supplier Device Package 0603
Dimension 0.063" L x 0.031" W (1.60mm x 0.80mm)
Height - Seated (Max) 0.022" (0.55mm)
Number of Terminations 2
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8533.21.0030
Other Names 1276-4866-1,1276-4866-2,1276-4866-6
Standard Package 5,000
Win Source Part Number 972183-RC1608F224CS
Ultra Librarian 3D Model Ultra Librarian RC1608F224CS CAD Model

Description

This is a Samsung Electro-Mechanics chip resistor that has a resistance of 220 kOhms.

  • Composition: Thick Film
  • Power Rating: 0.1W or 1/10W
  • Tolerance: ±1%
  • Temperature Coefficient: ±100ppm/°C
  • Mounting Type: Surface Mount
  • Package: 0603 (1608 Metric)
  • Terminations: 2
  • Packaging: Tape and Reel
  • Height: 0.022" (0.55mm)
  • Size: 0.063" L x 0.031" W (1.60mm x 0.80mm)
  • Temperature Range: -55°C to 155°C
  • ROHS3: ROHS3 Compliant
