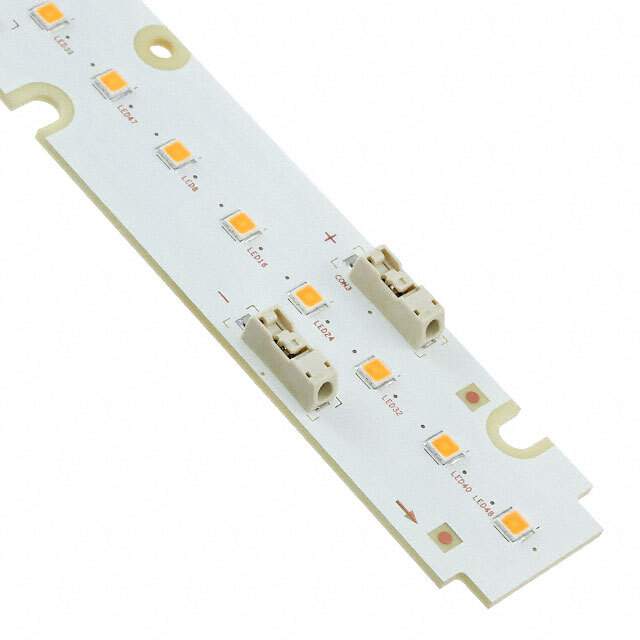

SL-B8U3N80L1WW Real Image
Same model may have multiple batches, images only for reference.

SL-B8U3N80L1WW

Part No SL-B8U3N80L1WW
Manufacturer Samsung
Catalog LED Lighting - COBs, Engines, Modules
Description LED MOD INFLUXL04 WARM WHT STRIP / LED Lighting COBs Engines Modules LED Module series White, Warm Linear Light Strip
Datasheet
SL-B8U3N80L1WW Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Optoelectronics>LED Lighting - COBs, Engines, Modules, Strips
Mfr Samsung Semiconductor, Inc.
Series inFlux_L04
Package Tray
Product Status Obsolete
Type LED Module
Color White, Warm
CCT (K) 3500K
Configuration Linear Light Strip
Luminous Flux @ Current/Temperature 4260lm (Typ)
Current - Test 1.38A
Temperature - Test 65°C
Voltage - Forward (Vf) (Typ) 24.1V
Lumens/Watt @ Current - Test 128 lm/W
Current - Max 1.38A
CRI (Color Rendering Index) 80
Viewing Angle 115°
Features With Connector
Dimension 559.50mm L x 23.70mm W
Height 5.90mm
Lens Type Flat
Other Names 1510-1565,SL-B8U3N80L1WW
Standard Package 224
MSL Level Not Applicable
ECCN EAR99
HTSUS 8541.41.0000
Win Source Part Number 1241171-SL-B8U3N80L1WW
Ultra Librarian 3D Model Ultra Librarian SL-B8U3N80L1WW CAD Model

Description

The Samsung Semiconductor inFlux_L04 LED module is a linear light strip that comes with a connector for easy installation.

  • Color: White or warm color
  • CCT: 3500K
  • CRI: 80
  • Viewing Angle: 115 degrees
  • Voltage-Forward: 24.1V
  • Current - Max: 1.38A
  • Luminous Flux: 4260lm @ a temperature of 65 degrees Celsius
  • Dimension: 559.50mm in length and 23.70mm in width
  • ECCN: EAR99
  • Mfr: Samsung Semiconductor, Inc.
