Same model may have multiple batches, images only for reference.

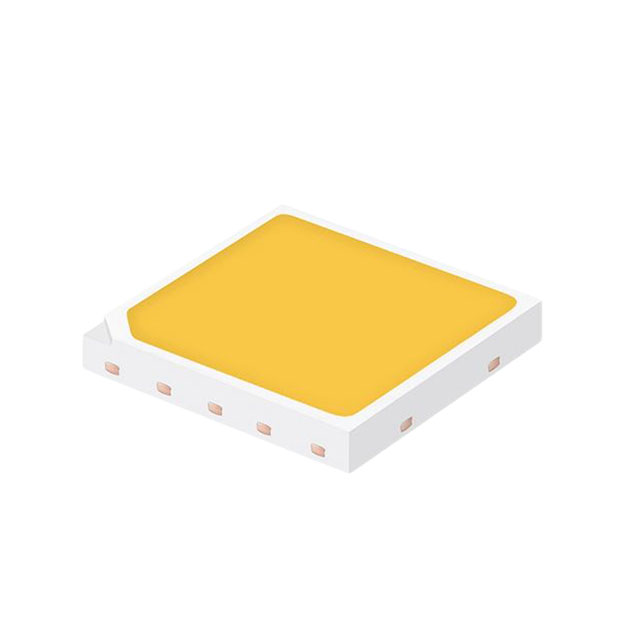

SPHWH1L5N603YEQ5A2 Real Image
Same model may have multiple batches, images only for reference.

SPHWH1L5N603YEQ5A2

Part No SPHWH1L5N603YEQ5A2
Manufacturer Samsung
Catalog LED Lighting - White
Description LED WHITE HP 5700K 70CRI SMD / LED Lighting series White, Cool 5700K 5-Step MacAdam Ellipse 6.1V 640mA 120° 2020 (5050 Metric)
Datasheet
SPHWH1L5N603YEQ5A2 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Optoelectronics>LED Lighting - White
Mfr Samsung Semiconductor, Inc.
Series LH502C
Color White, Cool
CCT (K) 5700K 5-Step MacAdam Ellipse
Current - Test 640mA
Voltage - Forward (Vf) (Typ) 6.1V
CRI (Color Rendering Index) 70
Current - Max 880mA
Viewing Angle 120°
Mounting SMD (SMT)
Package / Case 2020 (5050 Metric)
Supplier Device Package SMD
Dimension 0.197" L x 0.197" W (5.00mm x 5.00mm)
Height - Seated (Max) 0.031" (0.80mm)
Thermal Resistance of Package 3°C/W
Base Product Number SPHWH1
Other Names 1510-SPHWH1L5N603YEQ5A2DKR,1510-SPHWH1L5N603YEQ5A2TR,1510-SPHWH1L5N603YEQ5A2CT
Standard Package 2,000
MSL Level 2A (4 Weeks)
ECCN EAR99
HTSUS 8541.41.0000
Win Source Part Number 1239898-SPHWH1L5N603YEQ5A2
Ultra Librarian 3D Model Ultra Librarian SPHWH1L5N603YEQ5A2 CAD Model

Description

The Samsung LH502C is a cool white LED lighting component that is designed for use in a variety of applications.

  • Viewing Angle: 120°
  • Forward Voltage (Vf): 6.1V
  • Mounting Type: Surface Mount Device
  • Package: 2020 (5050 Metric)
  • Height: 0.031" (0.80mm)
  • CCT: 5700K 5-Step MacAdam Ellipse
  • CRI: 70
  • Thermal Resistance of Package: 3°C/W
  • Operating Temperature Range: -55°C to 125°C
