Same model may have multiple batches, images only for reference.

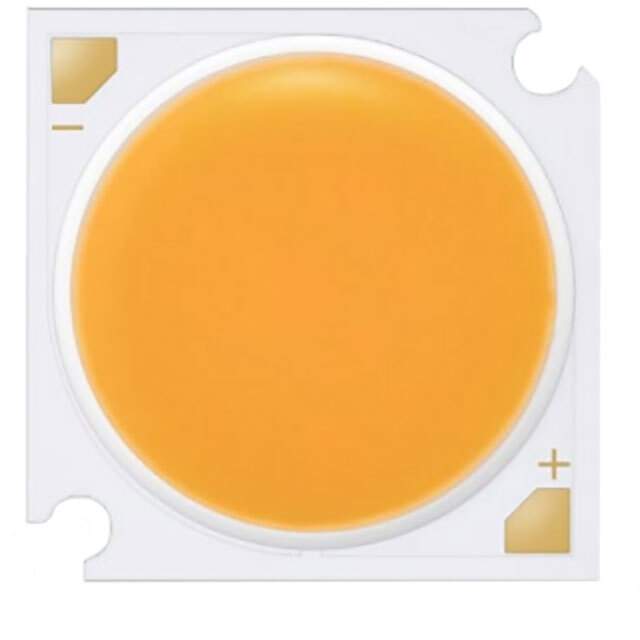

SPHWHAHDNC27YZT3DB Real Image
Same model may have multiple batches, images only for reference.

SPHWHAHDNC27YZT3DB

Part No SPHWHAHDNC27YZT3DB
Manufacturer Samsung
Catalog LED Lighting - COBs, Engines, Modules
Description LED COB WHT LC009D 4000K 90CRI  /  LED Lighting COBs Engines Modules Chip On Board (COB) series White, Neutral Square
Datasheet
SPHWHAHDNC27YZT3DB Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Optoelectronics>LED Lighting - COBs, Engines, Modules, Strips
Mfr Samsung Semiconductor, Inc.
Series COB D Gen2
Type Chip On Board (COB)
Color White, Neutral
CCT (K) 4000K 3-Step MacAdam Ellipse
Configuration Square
Luminous Flux @ Current/Temperature 1285lm (Typ)
Current - Test 270mA
Temperature - Test 85°C
Voltage - Forward (Vf) (Typ) 34V
Lumens/Watt @ Current - Test 140 lm/W
Current - Max 540mA
CRI (Color Rendering Index) 90
Viewing Angle 115°
Dimension 13.50mm L x 13.50mm W
Height 1.50mm
Light Emitting Surface (LES) 9.80mm Dia
Lens Type Flat
Base Product Number SPHWHAHDNC27
Other Names 1510-SPHWHAHDNC27YZT3DB
Standard Package 500
MSL Level 2A (4 Weeks)
ECCN EAR99
HTSUS 8541.41.0000
Win Source Part Number 1241556-SPHWHAHDNC27YZT3DB
Ultra Librarian 3D Model Ultra Librarian SPHWHAHDNC27YZT3DB CAD Model

Description

The Samsung Semiconductor COB D Gen2 is a chip on board (COB) type LED lighting module that is ideal for use in optoelectronics applications.

  • Configuration: Square
  • Viewing Angle: 115 degrees
  • Maximum Current: 540mA
  • Voltage Forward (Vf): 34V (typical)
  • Light Emitting Surface (LES): 9.80mm diameter
  • Height: 1.50mm
  • Color Temperature (CCT): 4000K with a 3-step MacAdam Ellipse
  • Luminous Flux: 1285lm (typical) @ a current/temperature of 270mA/85°C
  • Color Rendering Index (CRI): 90
