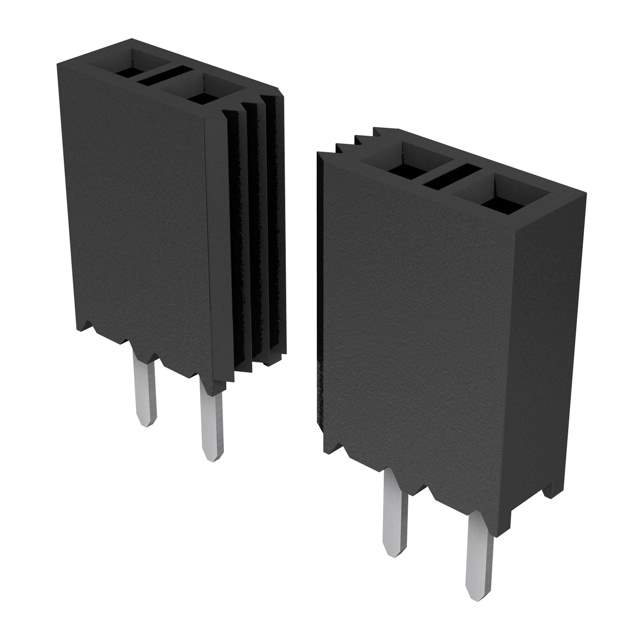

The Tiger Claw™ BCS 1152994-BCS-134-L-S-TE is a 34 position, board-to-board, rectangular connector designed by Samtec Inc.

• Design: The connector is designed as a receptacle.
• Contact Type: and has a female socket contact type.
• Material: It is made of phosphor bronze.
• Contact Finish: and has a gold finish for mating contacts.
• Voltage Rating: The connector has a voltage rating of 475VAC.
• Current Rating: and a current rating of 4.6A per contact.
• RoHS Compliance: The connector is RoHS compliant.
• Flammability Rating: and has a material flammability rating of UL94 V-0.
• Pitch: The connector has a pitch-mating of 0.100" (2.54mm).
• Contact Finish Thickness: and a contact finish thickness-mating of 10.0µin (0.25µm).
• Mounting: It is mounted through the hole.
• Package: and has a tube package.
• Temperature Range: The connector has a temperature range of -55°C ~ 125°C.
• REACH Compliance: and is REACH unaffected.
