Same model may have multiple batches, images only for reference.

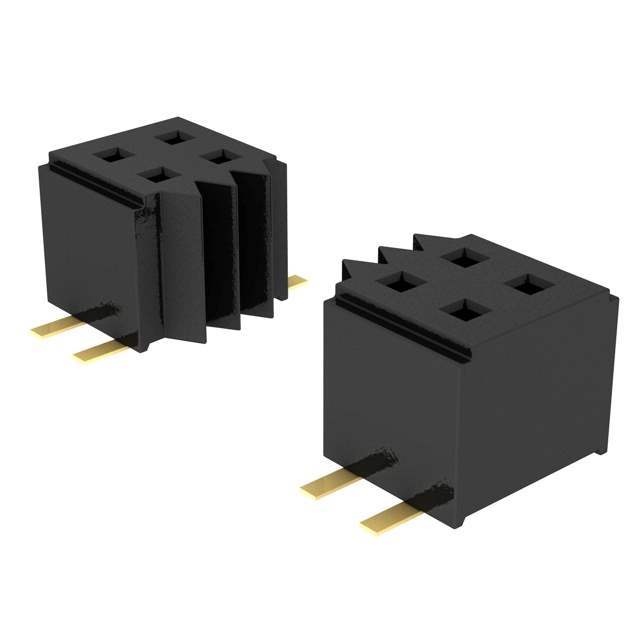

CLM-110-02-H-D Samtec Inc.
Same model may have multiple batches, images only for reference.

CLM-110-02-H-D

Part No CLM-110-02-H-D
Manufacturer Samtec Inc.
Catalog Rectangular Connectors
Description CONN RCPT 20POS 0.039 GOLD SMD
Datasheet
CLM-110-02-H-D Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Win Source Part Number WS1309635-CLM-110-02-H-D
Category Connectors, Interconnects> Rectangular Connectors >Headers, Receptacles, Female Sockets
Mfr Samtec Inc.
Packaging  Tube
Part Status Active
Connector Type Receptacle
Contact Type Female Socket
Style Board to Board
Number of Positions 20
Number of Positions Loaded All
Pitch - Mating 0.039" (1.00mm)
Ultra Librarian 3D Model Ultra Librarian CLM-110-02-H-D CAD Model

Description

20 Position Receptacle Connector 0.039" (1.00mm) Surface Mount Gold<button class="MuiButtonBase-root MuiIconButton-root MuiIconButton-sizeSmall mui-css-1d8yyci" tabindex="0" type="button" data-testid="copy-button">
