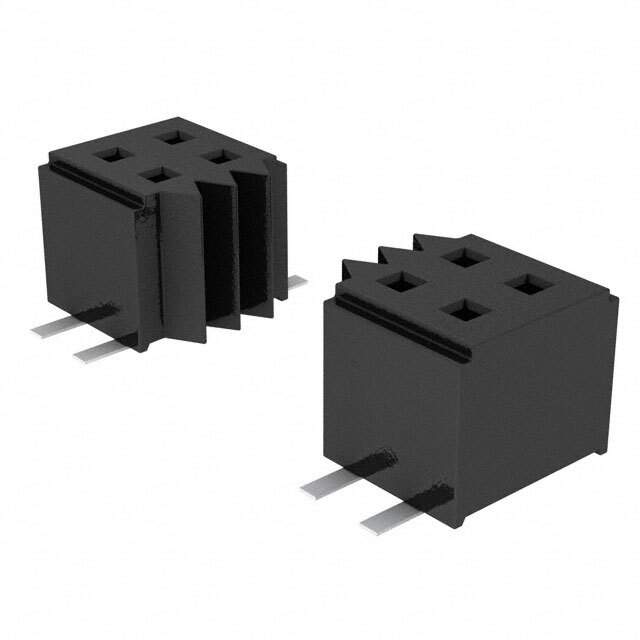

Same model may have multiple batches, images only for reference.

CLM-150-02-L-D-K-TR

Name: CLM-150-02-L-D-K-TR
Brand: Samtec Inc.
SKU: 771604
Availability: InStock
Rating: 4.85 (5 reviews)

Get a Quote

Part No	CLM-150-02-L-D-K-TR
Manufacturer	Samtec Inc.
Catalog	Rectangular Connectors
Description	1MM MICRO STRIPS / Conn Socket Strip SKT 100 POS 1mm Solder ST SMD T/R
Datasheet	CLM-150-02-L-D-K-TR Datasheet
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Categories	Connectors, Interconnects
Manufacturer	Samtec Inc.
Series	CLM
Packaging	Bulk
Connector Type	Receptacle
Contact Type	Female Socket
Style	Board to Board
Number of Positions	100
Number of Positions Loaded	All
Pitch - Mating	0.039" (1.00mm)
Number of Rows	2
Row Spacing - Mating	0.039" (1.00mm)
Mounting	SMD
Termination	Solder
Fastening Type	Push-Pull
Contact Finish - Mating	Gold
Contact Finish Thickness - Mating	10μin (0.25μm)
Insulation Color	Black
Insulation Height	0.084" (2.14mm)
Operating Temperature Range	-55°C ~ 125°C
Material Flammability Rating	UL94 V-0
Contact Finish - Post	Tin
Features	Pick and Place
Current Rating	2.8A per Contact
Insulation Material	Liquid Crystal Polymer (LCP)
Contact Shape	Square
Contact Material	Phosphor Bronze
Win Source Part Number	771604-CLM-150-02-L-D-K-TR
Popularity	Medium
Supply and Demand Status	Limited
Family Name	CLM
Introduction Date	July 12, 1995
ECCN	EAR99
Country of Origin	China, Costa Rica, Malaysia, Singapore, Taiwan, United States of America, Vietnam
Halogen Free	Compliant
Estimated EOL Date	2025
Ultra Librarian 3D Model	Ultra Librarian CLM-150-02-L-D-K-TR CAD Model

Alternative Products

Description

The Samtec Inc. CLM-150-02-L-D-K-TR is a board-to-board, 100 position, 2-row, female socket connector.

Pitch Mating: 0.039 inches (1.00mm)
Row Spacing: 0.039 inches (1.00mm)
Contact Finish: Gold
Contact Finish Thickness: 10µin (0.25µm)
Contact Shape: Square
Contact Material: Phosphor bronze
Insulation Material: Liquid crystal polymer
Flammability Rating: UL94 V-0
Current Rating: 2.8A per contact
Series: CLM
Alternative Parts: CLM-150-02-G-D-K-TR, CLM-150-02-H-D-K-TR
Supply and Demand Status: Limited
Estimated EOL Date: 2025
