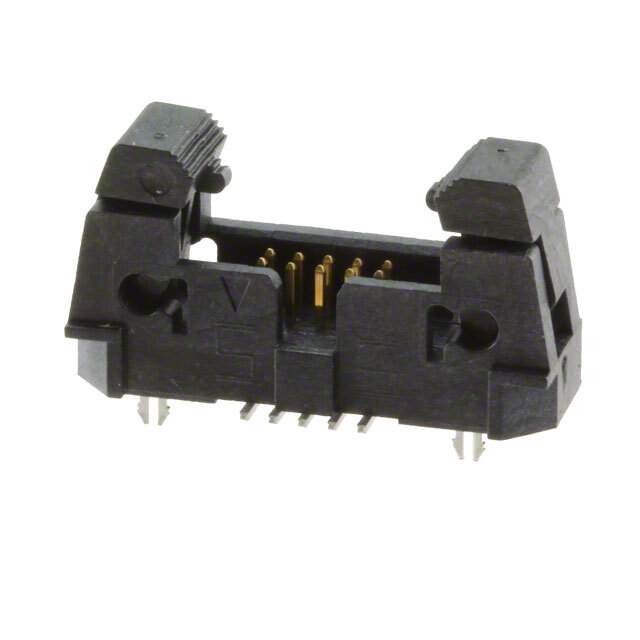

EHF-105-01-F-D-SM-LC

Name: EHF-105-01-F-D-SM-LC
Brand: Samtec Inc.
SKU: 773694
Availability: InStock
Rating: 4.85 (5 reviews)

Get a Quote

This model is a standard, industry-grade component frequently used in electronic manufacturing.

Part No	EHF-105-01-F-D-SM-LC
Manufacturer	Samtec Inc.
Catalog	Rectangular Connectors
Description	CONN HEADER .05" 10POS DUAL SMD / Conn Ejector Header HDR 10 POS 1.27mm Solder ST SMD Tube
Datasheet	EHF-105-01-F-D-SM-LC Datasheet
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Categories	Connectors, Interconnects
Manufacturer	Samtec Inc.
Series	EHF
Packaging	Tube
Connector Type	Header
Contact Type	Male Pin
Pitch - Mating	0.050" (1.27mm)
Style	Board to Cable/Wire
Shrouding	Shrouded - 4 Wall
Number of Positions	10
Number of Positions Loaded	All
Number of Rows	2
Row Spacing - Mating	0.050" (1.27mm)
Mounting	SMD
Termination	Solder
Fastening Type	Latch Lock/Eject Hooks
Contact Length - Mating	0.120" (3.05mm)
Insulation Height	0.325" (8.25mm)
Contact Shape	Square
Contact Finish - Mating	Gold
Contact Finish Thickness - Mating	3μin (0.08μm)
Contact Finish - Post	Tin
Contact Material	Phosphor Bronze
Insulation Material	Liquid Crystal Polymer (LCP), Glass Filled
Features	Board Lock, Keying Slot
Operating Temperature Range	-55°C ~ 125°C
Insulation Color	Black
Current Rating	1.75A
Win Source Part Number	773694-EHF-105-01-F-D-SM-LC
Popularity	Medium
Supply and Demand Status	Limited
Family Name	EHF
Introduction Date	February 12, 2008
ECCN	EAR99
Country of Origin	China, Costa Rica, Malaysia, Singapore, Taiwan, United States of America, Vietnam
Halogen Free	Compliant
Estimated EOL Date	2027
Ultra Librarian 3D Model	Ultra Librarian EHF-105-01-F-D-SM-LC CAD Model

Alternative Products

Description

This connector header is manufactured by Samtec Inc. and has a Win Source Part Number of 773694-EHF-105-01-F-D-SM-LC.

Series: EHF
Packaging: Tube
Positions Loaded: 10
Connector Style: Board to Cable/Wire
Contact Material: Phosphor Bronze
Voltage Rating: -
Current Rating: 1.75A
Mounting Type: Surface Mount Device (SMD)
Supply and Demand Status: Limited
