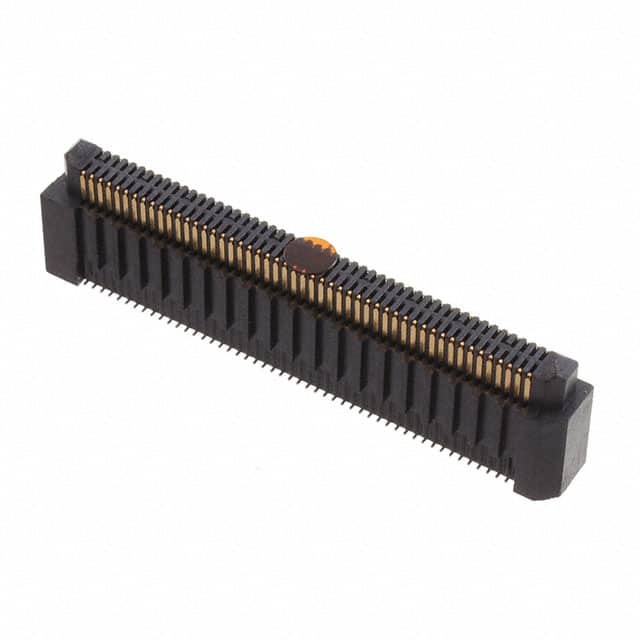

Same model may have multiple batches, images only for reference.
ERM8-050-09.0-S-DV-K-TR
Same model may have multiple batches, images only for reference.

ERM8-050-09.0-S-DV-K-TR

Part No ERM8-050-09.0-S-DV-K-TR
Manufacturer Samtec Inc.
Catalog Rectangular Connectors
Description CONN HDR 100POS SMD GOLD
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Connectors
Estimated Pruduction Lead Time 8 Weeks
Features 100 Position Connector Header, Center Strip Contacts Surface Mount Gold
Manufacturer Samtec Inc.
Series Edge Rate™ ERM8
Package Reel - TR
Mounting Surface Mount
Family Name ERM8-050
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8536.69.4040
Other Part Number SAM13807CT, SAM13807TR, ERM8-050-09.0-S-DV-K-TR-ND, SAM13807DKR
Quantity per package 125
Popularity Medium
Supply and Demand Status Limited
Win Source Part Number 871089-ERM8-050-09.0-S-DV-K-TR
Ultra Librarian 3D Model Ultra Librarian ERM8-050-09.0-S-DV-K-TR CAD Model

Description

The Samtec Inc. ERM8-050-09.0-S-DV-K-TR is a 100 position connector header from.

  • Series: Edge Rate™ ERM8 series
  • Package: Reel - TR
  • Mounting: Surface mount technology
  • Family Name: ERM8-050
  • ECCN: EAR99
  • Popularity: Medium
  • Supply and Demand Status: Limited
  • Quantity per Package: 125
  • MSL Level: 1 (Unlimited)
  • Estimated Production Lead Time: 8 weeks
  • REACH Status: REACH Unaffected
  • HTSUS code: 8536.69.4040
