Same model may have multiple batches, images only for reference.

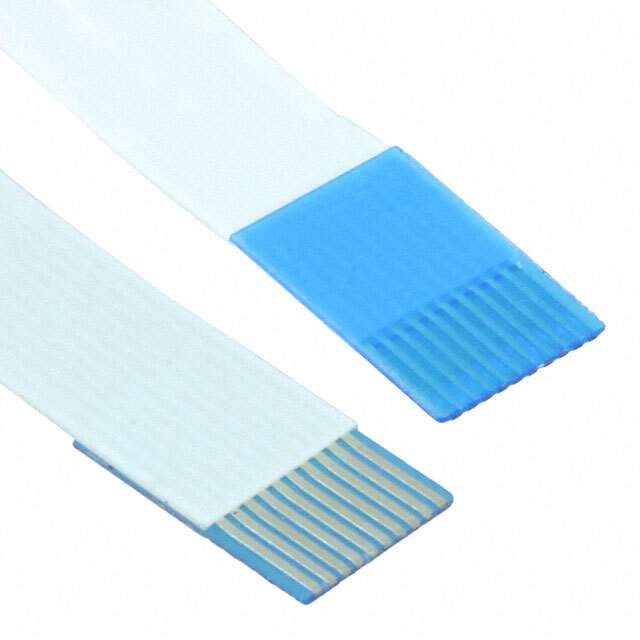

FJH-10-R-10.00-4 Real Image
Same model may have multiple batches, images only for reference.

FJH-10-R-10.00-4

Part No FJH-10-R-10.00-4
Manufacturer Samtec Inc.
Catalog Flat Flex, Ribbon Jumper Cables
Description .5MM FLEX CABLE JUMPER / 10 Position FFC, FPC Cable 0.020" (0.50mm) 10.0" (254.0mm)
Datasheet
FJH-10-R-10.00-4 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Cable Assemblies>Flat Flex Ribbon Jumpers, Cables
Mfr Samtec Inc.
Series FJH
Package Bulk
Cable Type FFC, FPC
Number of Conductors 10
Pitch 0.020" (0.50mm)
Length 10.0" (254.0mm)
Length - Exposed Ends 0.157" (4.00mm)
Termination Style Top on One Side, Bottom on Other, Backers on Both Sides
Base Product Number FJH-10
MSL Level Not Applicable
ECCN EAR99
HTSUS 8544.42.9090
Standard Package 1
Win Source Part Number 1066307-FJH-10-R-10.00-4
Ultra Librarian 3D Model Ultra Librarian FJH-10-R-10.00-4 CAD Model

Description

This FJH series cable assembly is a flat flex ribbon jumper designed for use in electronic devices. It has a pitch of 0.020 inches (0.50mm) and features termination style of top on one side, bottom on other, backers on both sides. The cable type is FFC and FPC, with 10 conductors and a length of 10.0 inches (254.0mm). The cable is bulk packaged and comes with 0.157 inches (4.00mm) exposed ends. This cable assembly is ideal for use in applications that require a flexible, high-density interconnect solution.
