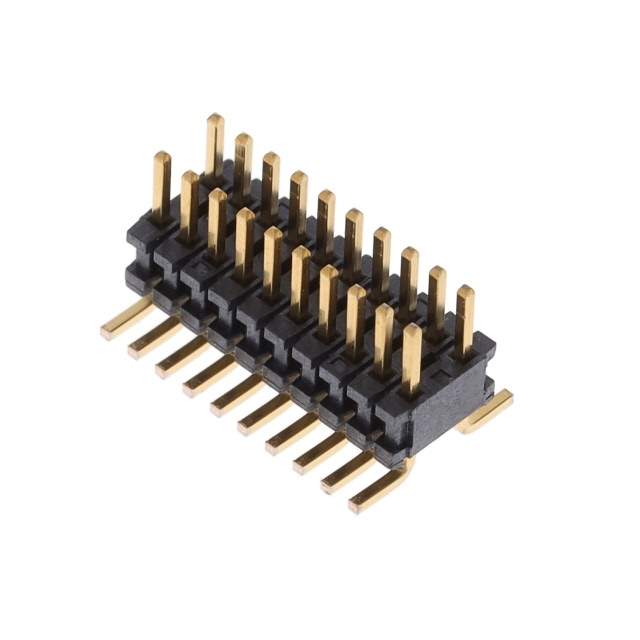

Name: FTR-110-03-G-D-P-TR
Brand: Samtec Inc.
SKU: 811268
Availability: InStock
Rating: 4.85 (5 reviews)

Products specifications Report Issue?

Manufacturer	Samtec Inc.
Packaging	Reel
Connector Type	Header
Contact Type	Male Pin
Pitch - Mating	0.050" (1.27mm)
Number of Positions	20
Number of Rows	2
Row Spacing - Mating	0.100" (2.54mm)
Number of Positions Loaded	All
Style	Board to Board
Shrouding	Unshrouded
Mounting Style	SMD
Termination	Solder
Fastening Type	Push-Pull
Contact Length - Mating	0.125" (3.18mm)
Insulation Height	0.100" (2.54mm)
Contact Shape	Square
Contact Finish - Mating	Gold
Contact Finish Thickness - Mating	10.0μin (0.25μm)
Contact Finish - Post	Gold
Contact Material	Phosphor Bronze
Insulation Material	Liquid Crystal Polymer (LCP)
Features	Pick and Place
Temperature Range - Operating	-55°C ~ 125°C
Material Flammability Rating	UL94 V-0
Insulation Color	Black
Current Rating (Amps)	3.1A per Contact
Contact Finish Thickness - Post	3.00μin (0.076μm)
Manufacturer Pack Quantity	125
Popularity	Medium
Supply and Demand Status	Limited
Win Source Part Number	811271-FTR-110-03-G-D-P-TR
Ultra Librarian 3D Model	Ultra Librarian FTR-110-03-G-D-P-TR CAD Model

Description

The 811271-FTR-110-03-G-D-P-TR is a board to board header connector manufactured by Samtec Inc.

Positions: 20
Mounting: SMD
Connector Type: Header
Contact Type: Male Pin
Positions Loaded: All
Rows: 2
Termination Type: Solder
Fastening Type: Push-Pull
Contact Material: Phosphor Bronze
Material Flammability Rating: UL94 V-0
Insulation Material: Liquid Crystal Polymer (LCP)
Pitch-Mating: 0.050 inches (1.27mm)
Contact Finish-Mating: Gold (10.0μin (0.25μm))
Contact Finish-Post: Gold (3.00μin (0.076μm))
Insulation Color: Black
Row Spacing-Mating: 0.100 inches (2.54mm)
Insulation Height: 0.100 inches (2.54mm)
Contact Shape: Square
Temperature Range: -55°C ~ 125°C
Contact Length-Mating: 0.125 inches (3.18mm)
Current Rating: 3.1A per contact
Manufacturer Pack Quantity: 125
